Removing and Installing Mounting Block For Pedals

Check the function after installation.
Remove clutch master cylinder.
Remove throttle cable from accelerator pedal and accelerator pedal from shaft. Remove brake light switch.

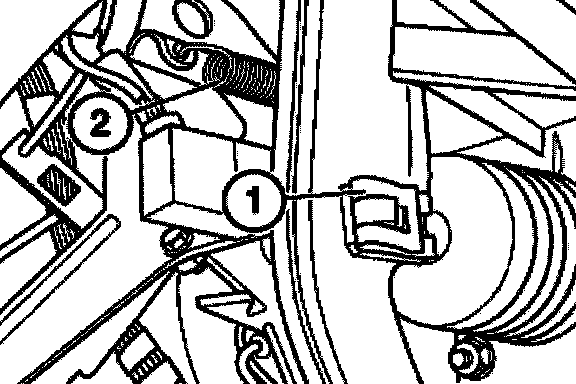

Pull off retainer (1).
Disconnect recoil spring (2).

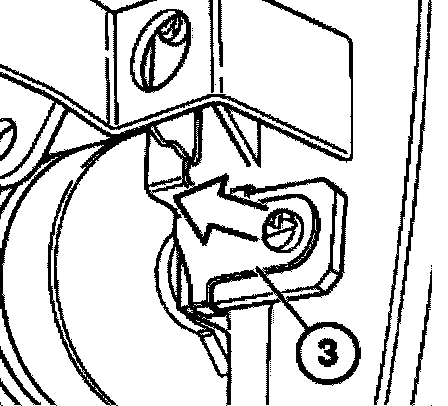

Withdraw pin (3).

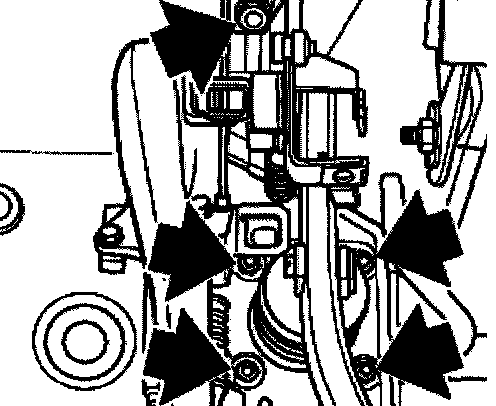

Unfasten nuts and remove mounting block.
