Replacing Seat Frame on Left/Right Front Seat (Normal/Manual)

Removing And Installing/Replacing Seat Frame On Left/Right Front Seat (Normal/Manual)

Removing seat cover with support.


Only replace:
Remove lumbar support pump and hose.

Only replace:

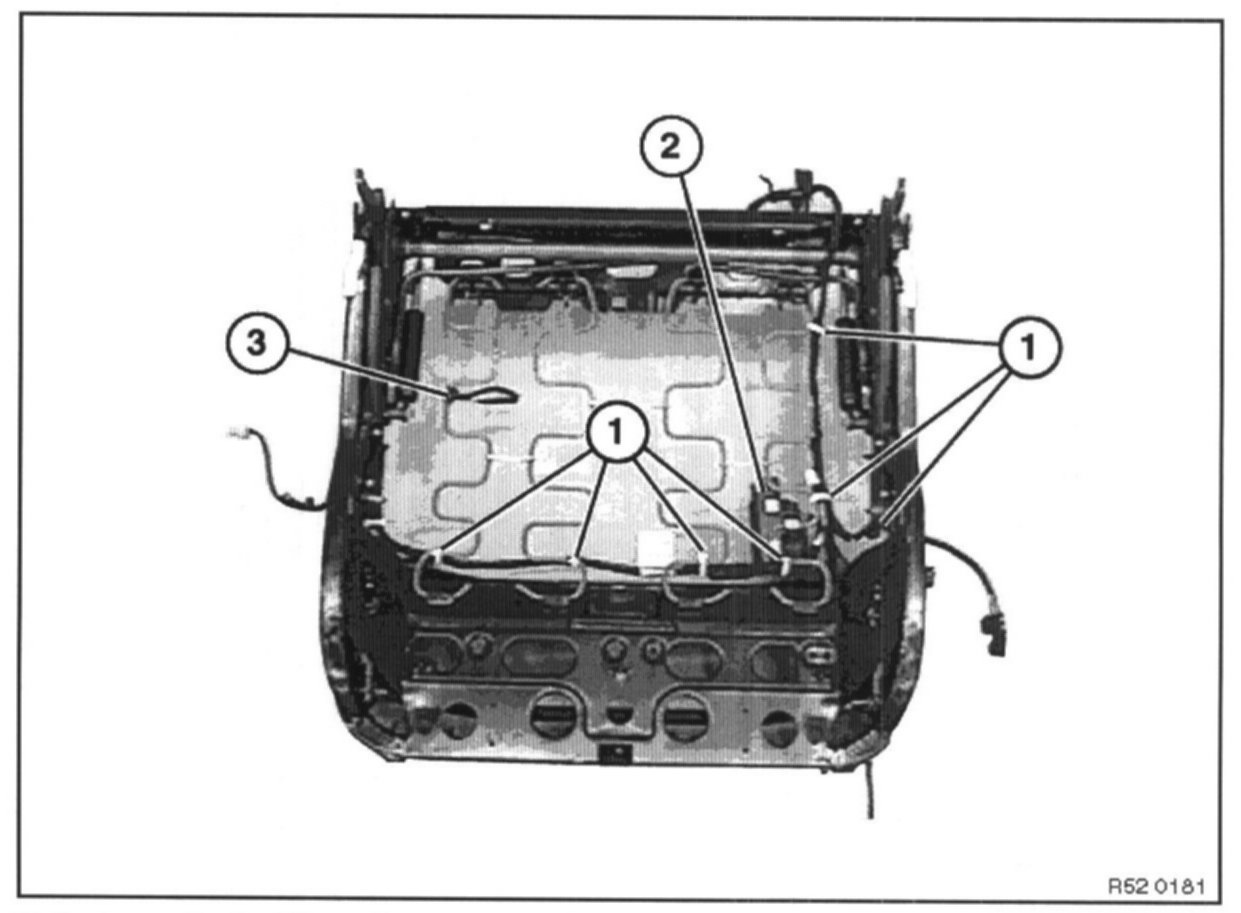

Unfasten cable tie (1), unclip connector (2) and remove wiring harness.
Remove rubber ring (3).







Installation:

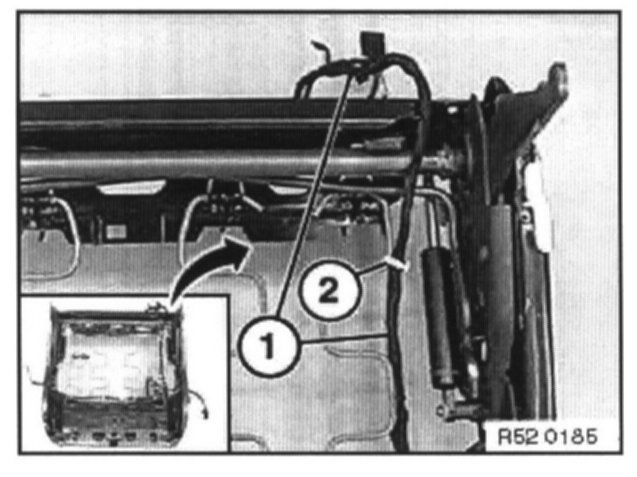

Note routing of line (1) for seatbelt tensioner.

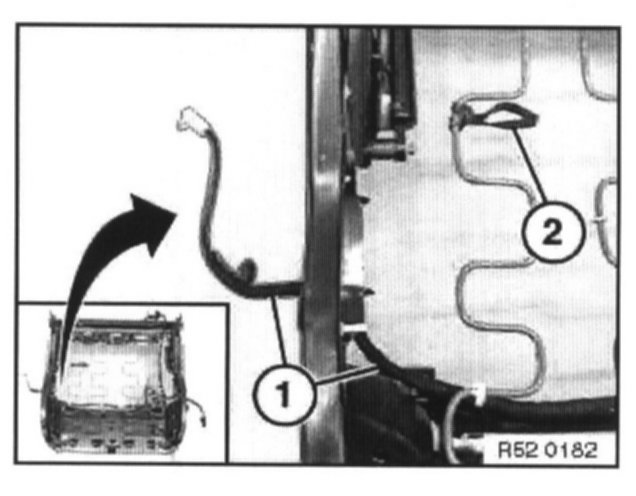

Secure rubber ring (2).







Secure line (1) for seatbelt tensioner with cable tie (2).

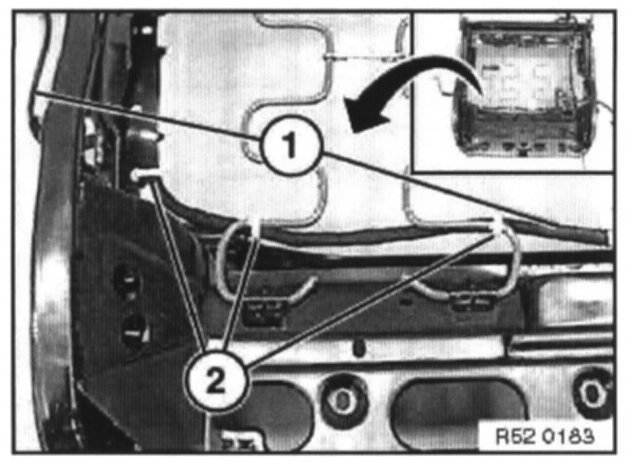

Unclip connector (1) and secure line (2) with cable tie (3).

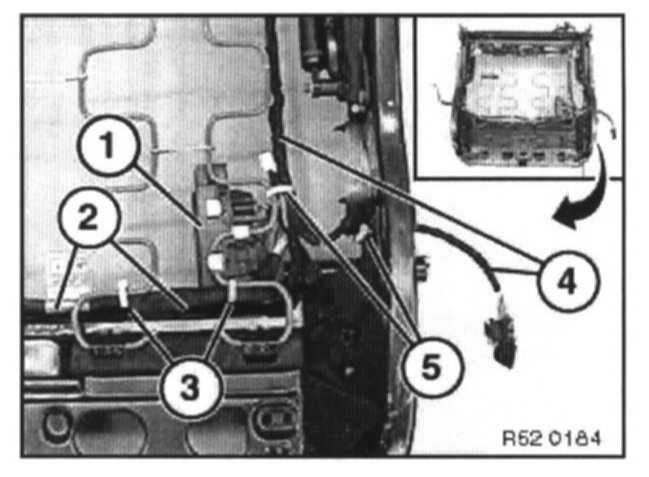

Version with seat heating/lumbar support:
Secure line (4) with cable tie (5).







Version with seat heating:
Secure line (1) with cable tie (2).
