Replacing Backrest Frame on Front Seat (Normal/Manual)

Removing And Installing/Replacing Backrest Frame On Left Or Right Front Seat (Normal/Manual)

Remove backrest cover with support.

Model with lumbar supports:
If necessary, remove lumbar support.
If necessary, remove valve housing.

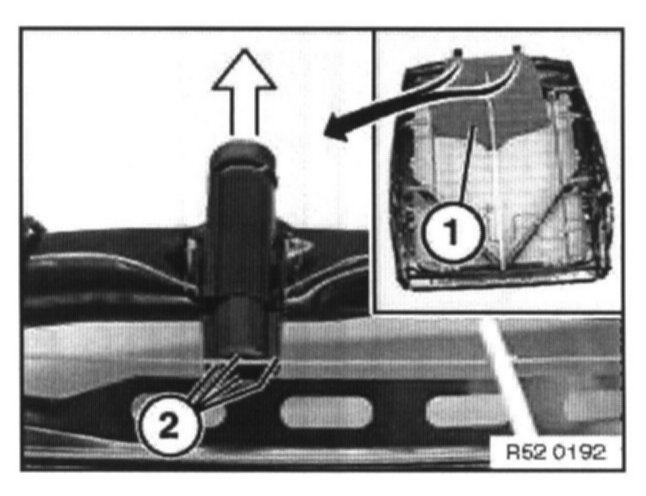

Disconnect tabs (1) from headrest supports.
Press together interlocks (2) and remove left/right headrest support.
