Replacing Bowden Cable For Longitudinal Adjustment Front Seat

Replacing Bowden Cable For Longitudinal Adjustment On Left Or Right Front Seat (Normal/Manual)

Remove front seat.

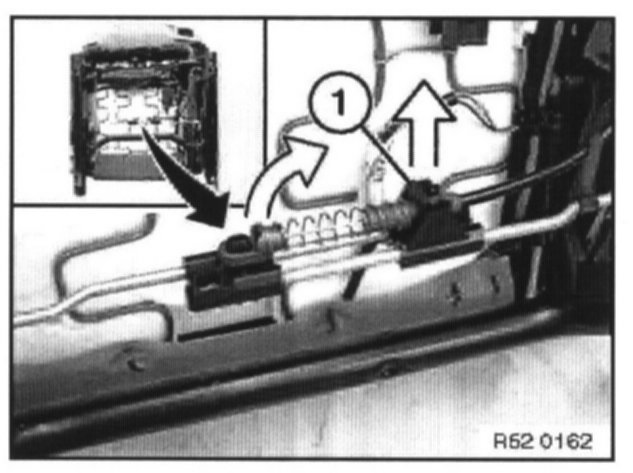

Remove clips (1) and pull Bowden cable forwards to remove.

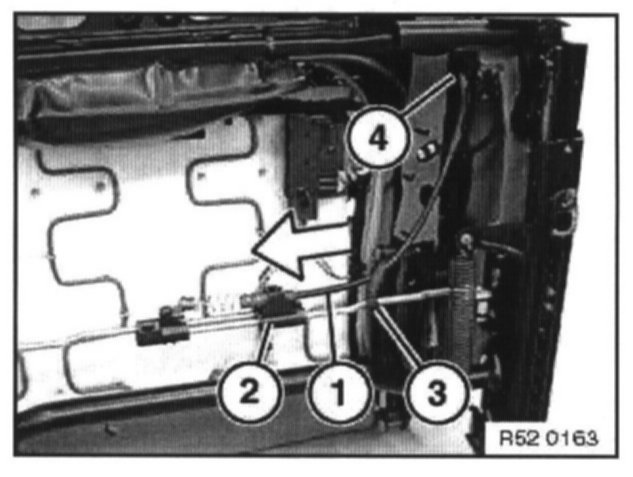

Slide Bowden cable (1) out of guide (2). Twist Bowden cable through 90 ° and lift out of support (4).

Installation Note: Route Bowden cable (1) behind rubber tape (3).

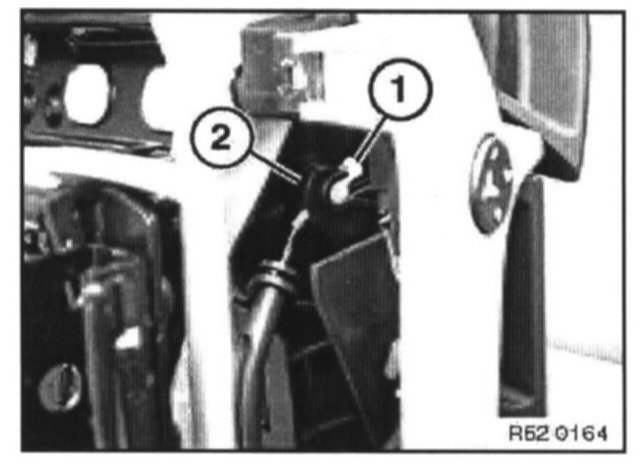

Withdraw Bowden cable nipple (1) from support (2) and remove Bowden cable for longitudinal adjustment.

Installation Note: Adjust Bowden cable for longitudinal adjustment.
