Adjusting Bowden Cable For Longitudinal Adjustment Front Seat

Adjusting Bowden Cable For Longitudinal Adjustment Of Left Or Right Front Seat (Normal/Manual)

Remove front seat refer.







Remove clip from Bowden cable sleeve.

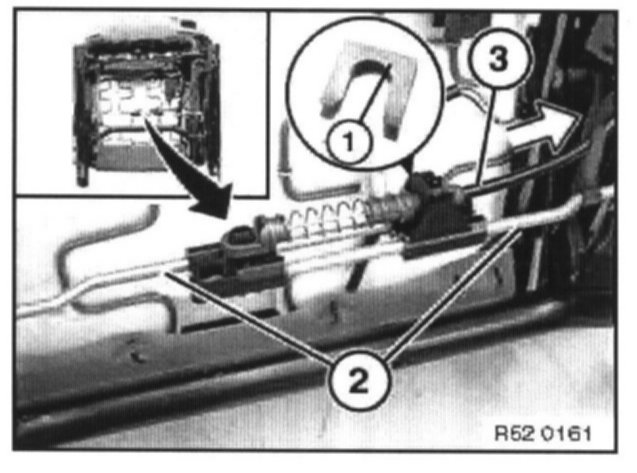

1st person presses left/right unlocking lever (1) down (towards cushion) to ensure that locking pins (2) have no clearance when vehicle is in motion.







NOTE: If the clip (1) is bent, replace it.


2nd person pulls on Bowden cable sleeve (3) at same time, pushing up clip (1).
