Replacing Left or Right Outside Mirror Housing

51 16... Replacing Left Or Right Outside Mirror Housing

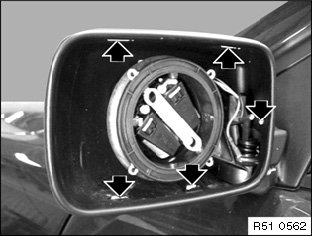

Remove mirror glass.
Replacing Mirror Glass

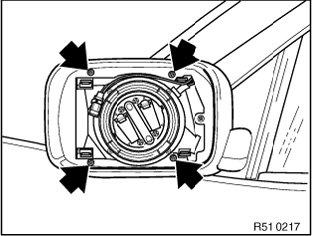

Mirror with automatic dip action: Tilt mirror forward. Unclip retaining clips and remove cover.







Mirror with automatic dip action:
Fold mirror forward again as far as possible.
Unfasten screws and remove "housing glasses".

Installation: Check function.

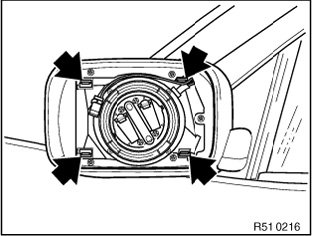

Mirror without automatic dip action:
Tilt mirror forward. Unclip retaining clips and remove cover.
