C-Pillar Trim Panel

51 43 251 Removing And Installing Or Replacing Trim From Rear Left Or Right Roof Pillar

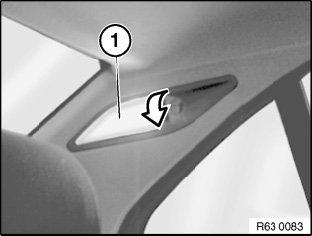

Lift interior light out from side of C pillar trim panel.

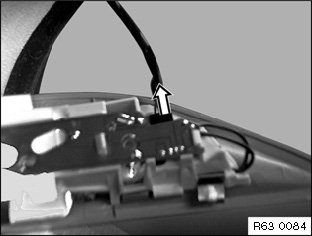

Pull off connectors.

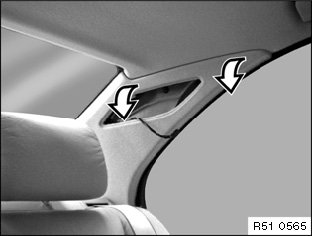

Pull trim upwards to unclip then inwards and upwards to remove.

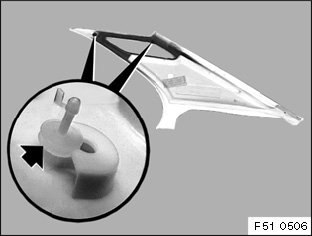

Installation: If necessary, replace damaged clips.







Only replace:
Remove insulating mat and cement to new trim panel.
