A-Pillar Trim Panel

51 43 201 Removing And Installing Or Replacing Trim For Front Left Or Right Roof

Warning:
- Version with head airbag:
- Follow safety instructions for working on cars with airbag systems.

Caution: Do not use sharp-edged tools to remove trim (risk of damage to head airbag).

Remove mucket from front roof pillar (A-Pillar finisher).







Version with head airbag (ITS):

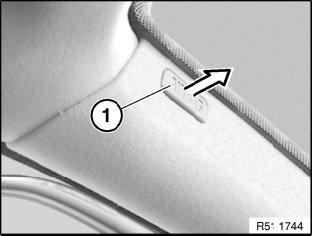

If necessary, lever out cap (1).







Version with head airbag (ITS):

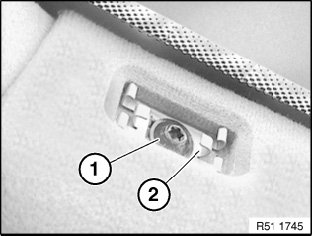

If necessary, release screw (1) and remove with clip (2).

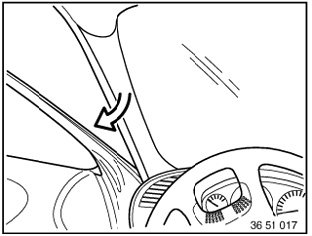

Unclip trim by pulling inwards and pull up to remove.

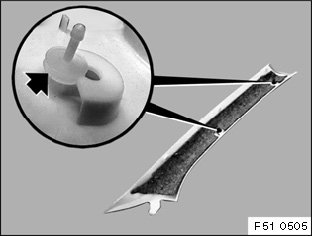

Installation: If necessary, replace damaged clips.







Version with head airbag (ITS):

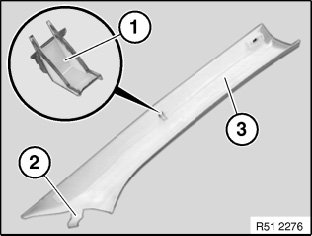

Installation: Mounts (1) and (2) of trim panel (3) must not be damaged.
