Replacing Video Module For on-Board Monitor (Touring)

Removing And Installing/Replacing Video Module For On-board Monitor (touring)

Installation:
Removing trunk floor panel trim.

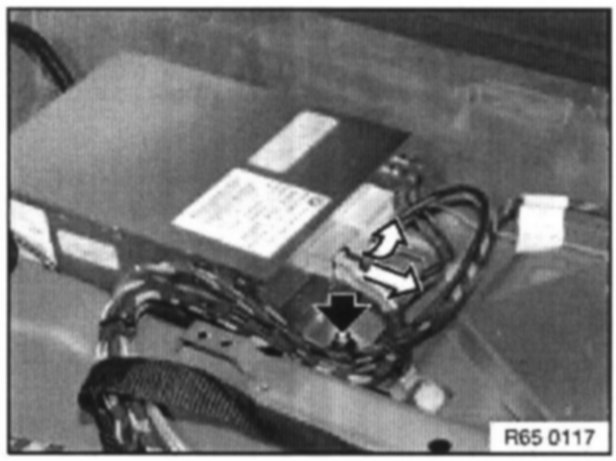

Pull off connector, unfasten nut and lift video module and pull out.







Installation:

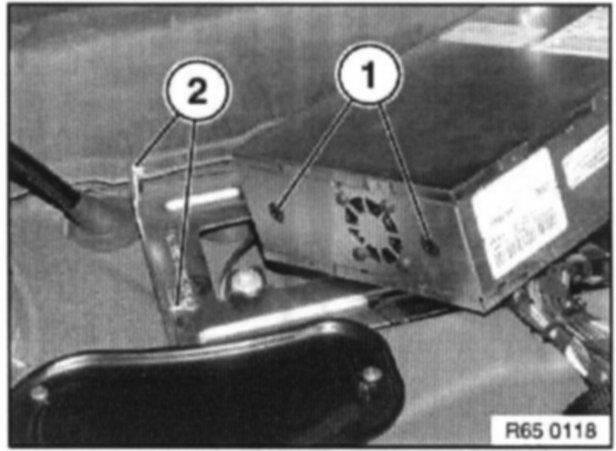

Guide holes (1) into pins (2), set down video module and screw down.
