Replacing Video Module For on-Board Monitor (Saloon)

Removing And Installing/Replacing Video Module For On-board Monitor (Saloon)

If necessary, remove CD-changer.

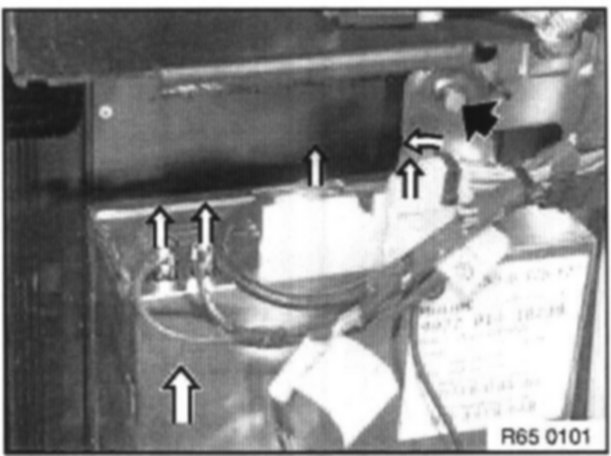

Open flap in rear left side panel.







Pull off connectors. Unfasten screw and pull video module upwards to remove.







Installation:

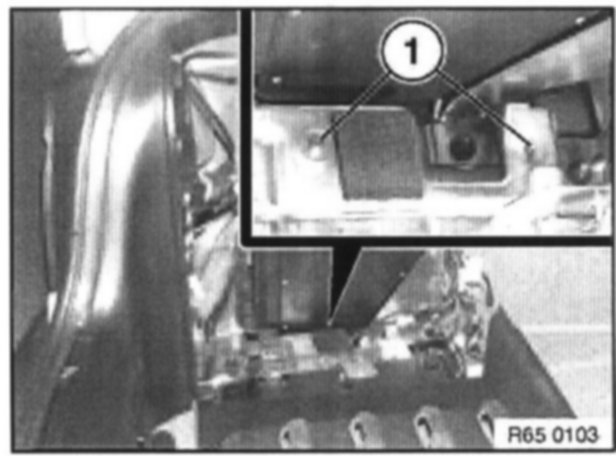

Fit video module on the guide bolts (1).
