Replacing Radio (With/With Out Mid or Iris)

Radio without MID or IRIS

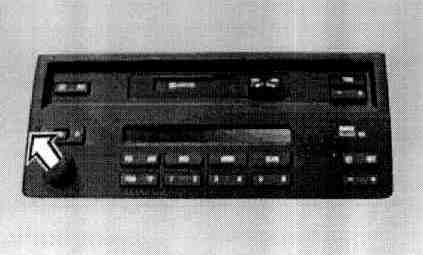

Remove button from volume control.

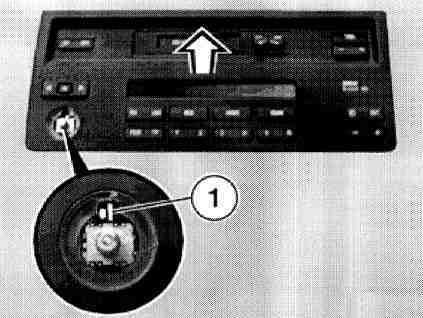

Insert screwdriver (5.5) approx. 1 mm into slot (1) and turn through 90 °.

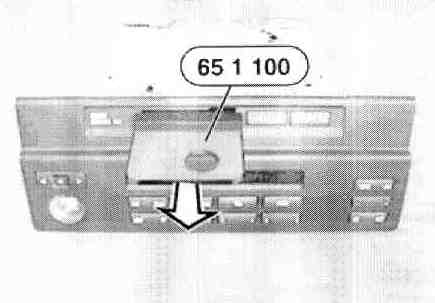

Hook special tool 65 1 100 into cassette socket and pull out radio.

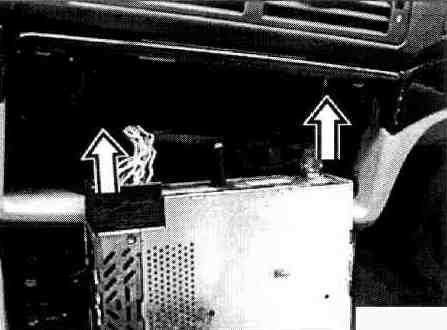

Pull off connectors.





Radios with MID or IRIS
Remove MID or IRIS.

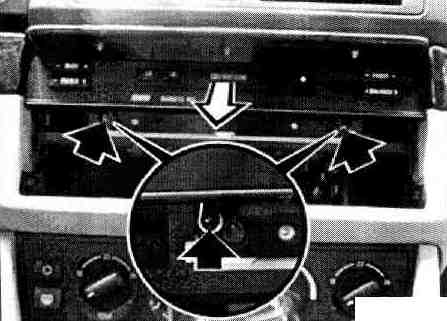

Unfasten left and right screw and remove radio.





Pull off connectors.
