Removing and Installing on-Board Monitor

Removing And Installing On-board Monitor

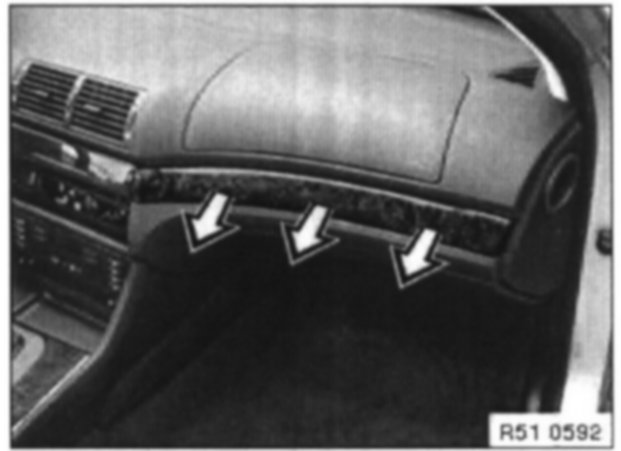

Pull off right wooden finisher.







Remove top left wooden finisher by pulling upwards.

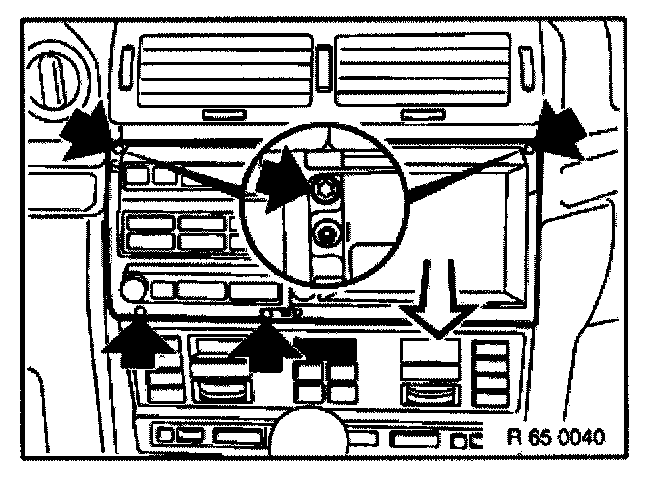

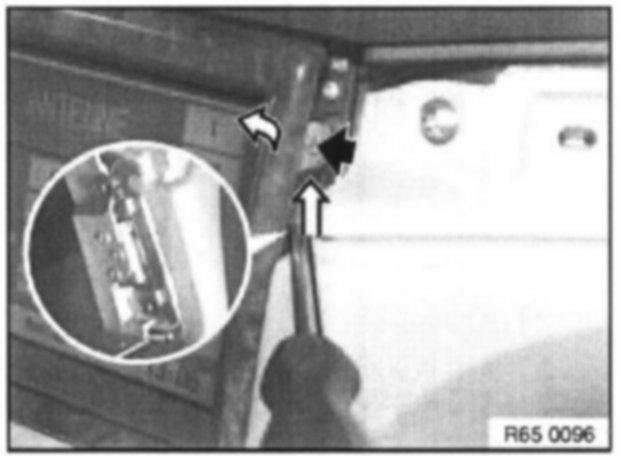

Unfasten left and right screw. Raise left and right levers with screwdriver and pull down finisher, then remove completely.







Unfasten screws.
Pull out on-board monitor towards front.

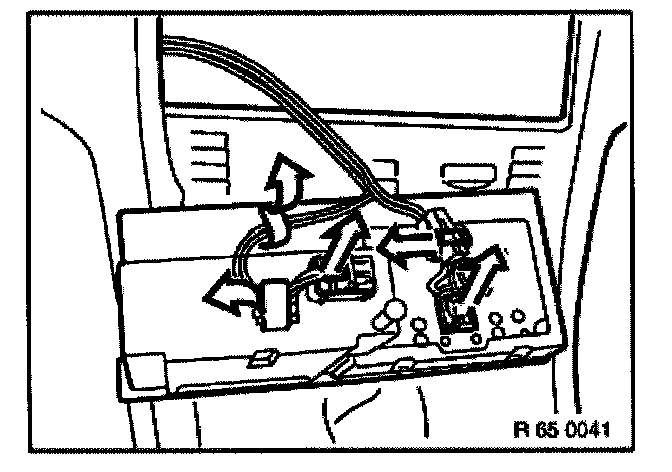

Remove plug and unfasten wiring harness from clips.
