Removing and Installing Complete on-Board Monitor (Widescreen)

Removing And Installing Complete On-board Monitor (Widescreen)







Lower panel for on-board monitor (control panel).


NOTE: Panel for on-board monitor (control panel) returns to its initial position after 15 seconds.

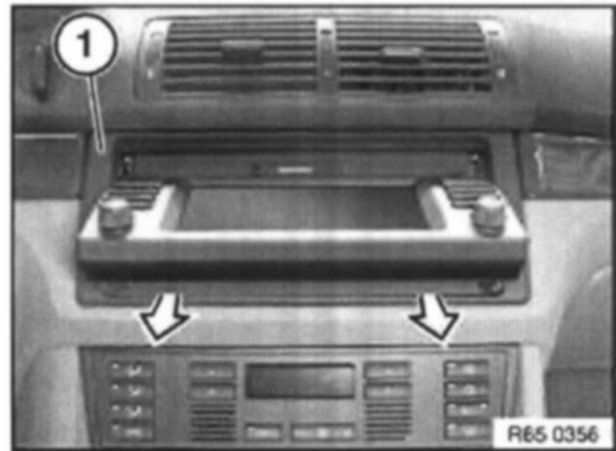

Detach frame for on-board monitor (1) in direction of arrow.

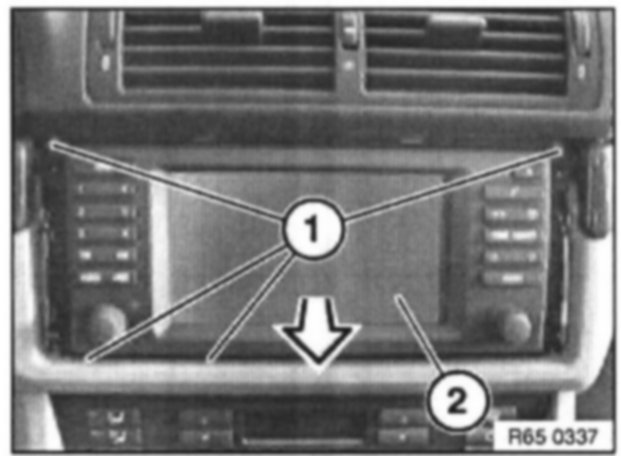

Release screws (1).
Pull out complete on-board monitor (2) in direction of arrow.

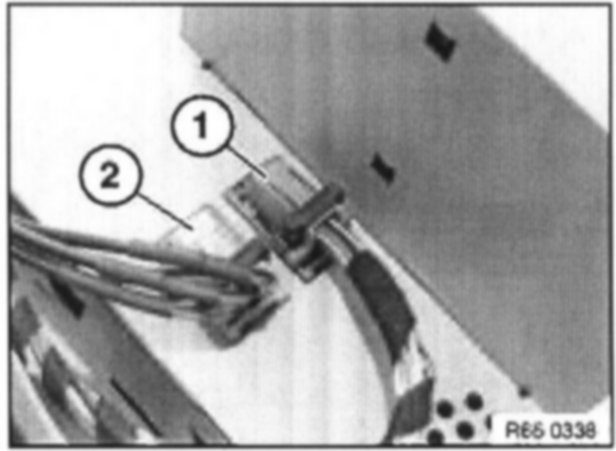

Unlock plug connections (1) and (2) and disconnect. Remove complete on-board monitor.
