Multiinformation Display (Mid or Iris), Replacement

Two different types of controls are fitted, depending on vehicle
equipment.
1. The multi-information display is used if any other controllable items of special equipment are fitted, e.g. BC
2. The integrated radio and information system contains all control and display elements for radio and clock functions.





IRIS

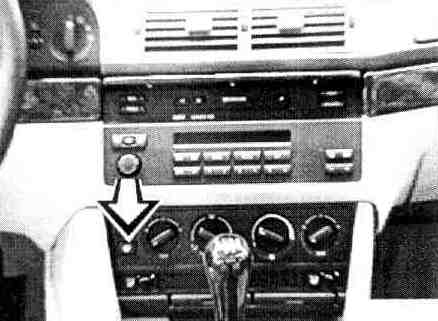

Remove volume control button.

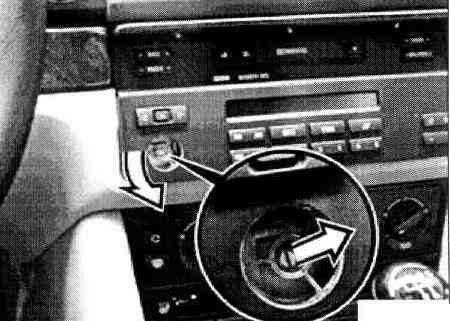

Press detent to one side and fold out IRIS.

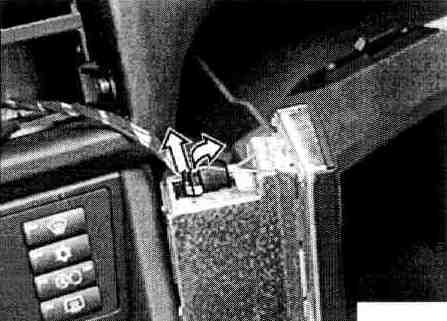

Remove connector





MID

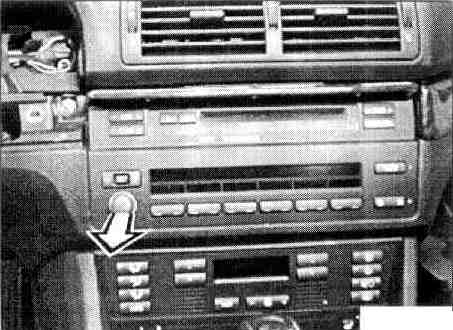

Remove volume control button.

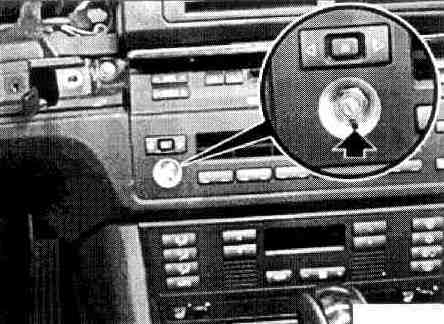

Twist detent with Allen key approx. 90 ° and fold out MID.

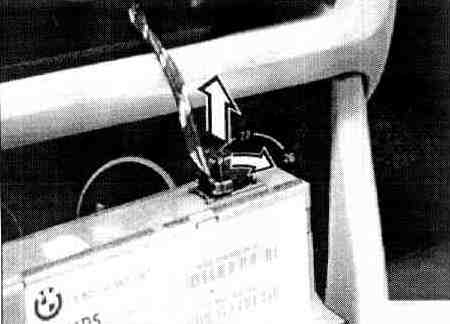

Remove connector
