Replacing CD Amplifier

If necessary, remove video module, Refer to Moniror Display Unit replacement, Service and Repair

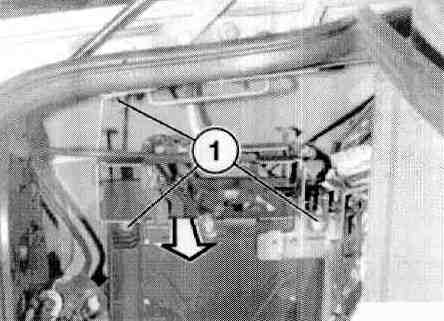

If necessary, remove bracket for video module. To do this, unfasten screws (1) and remove bracket.

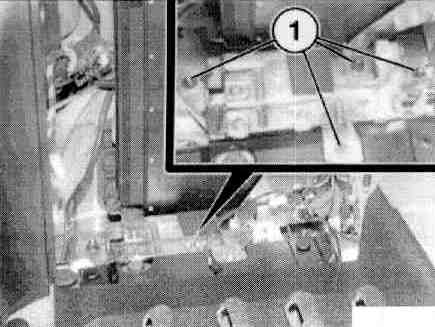

If necessary, remove bracket for navigation computer. To do this, unfasten screws (1) and remove bracket.

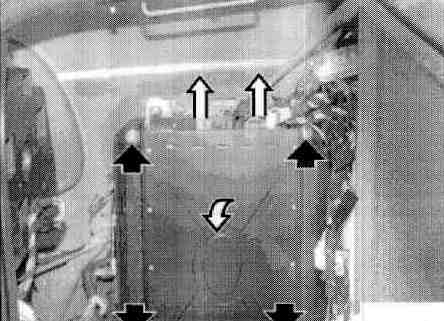

Disconnect connector, unfasten screws and remove amplifier.
