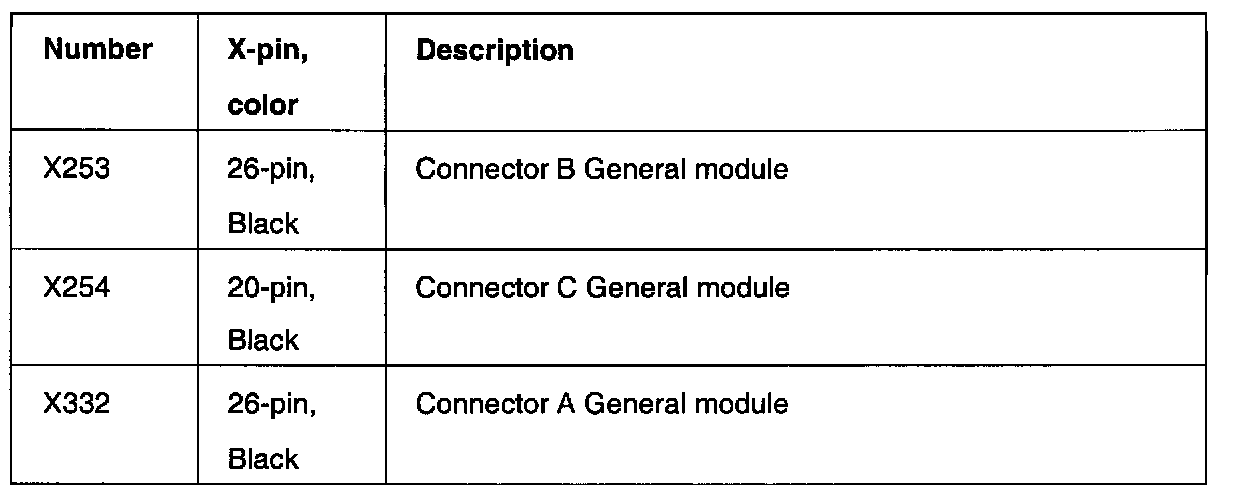

Electrical Diagrams

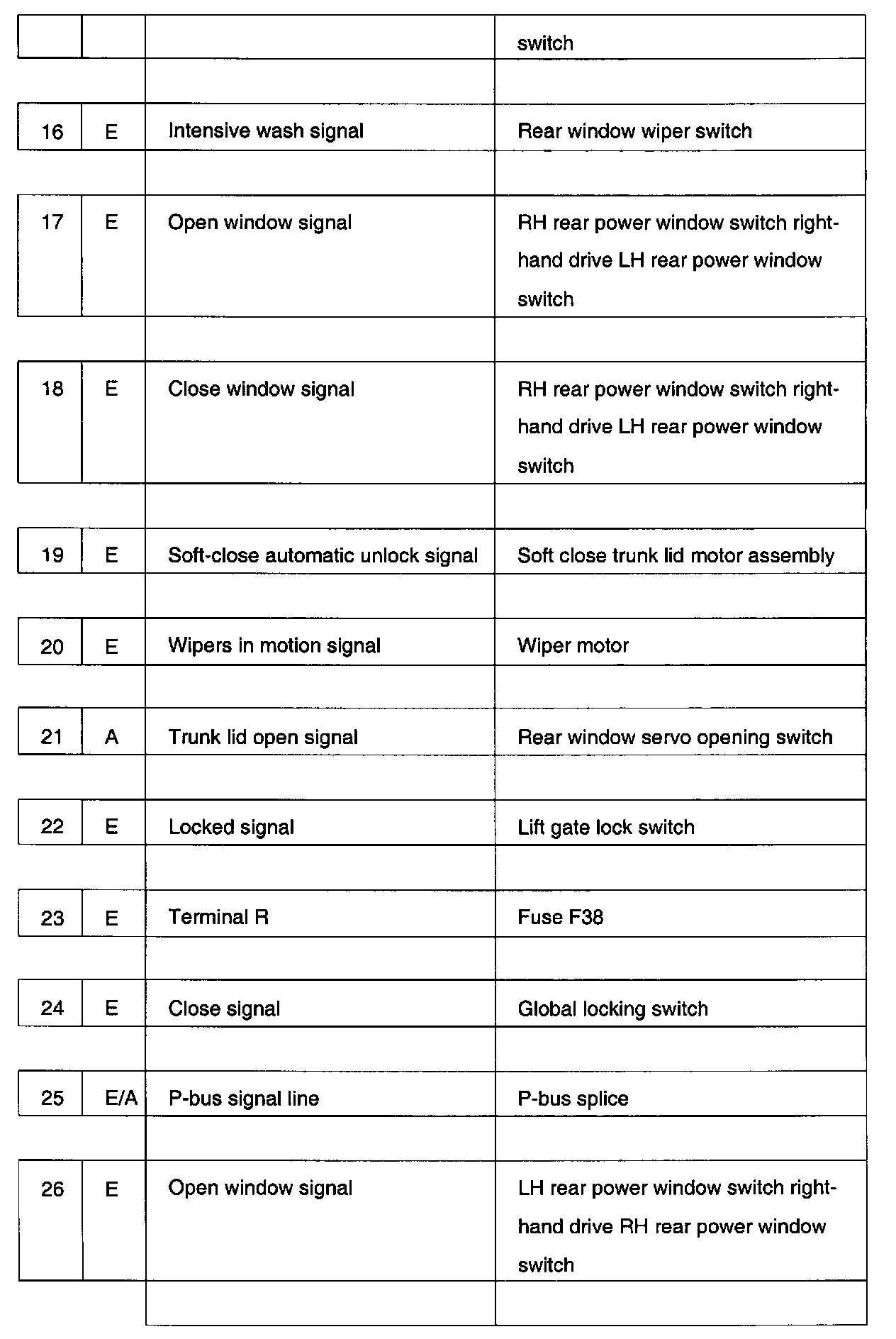

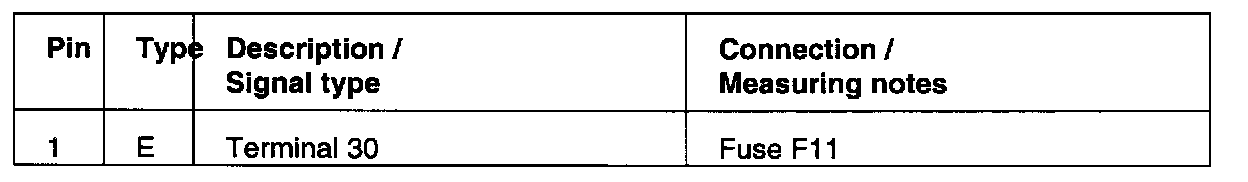

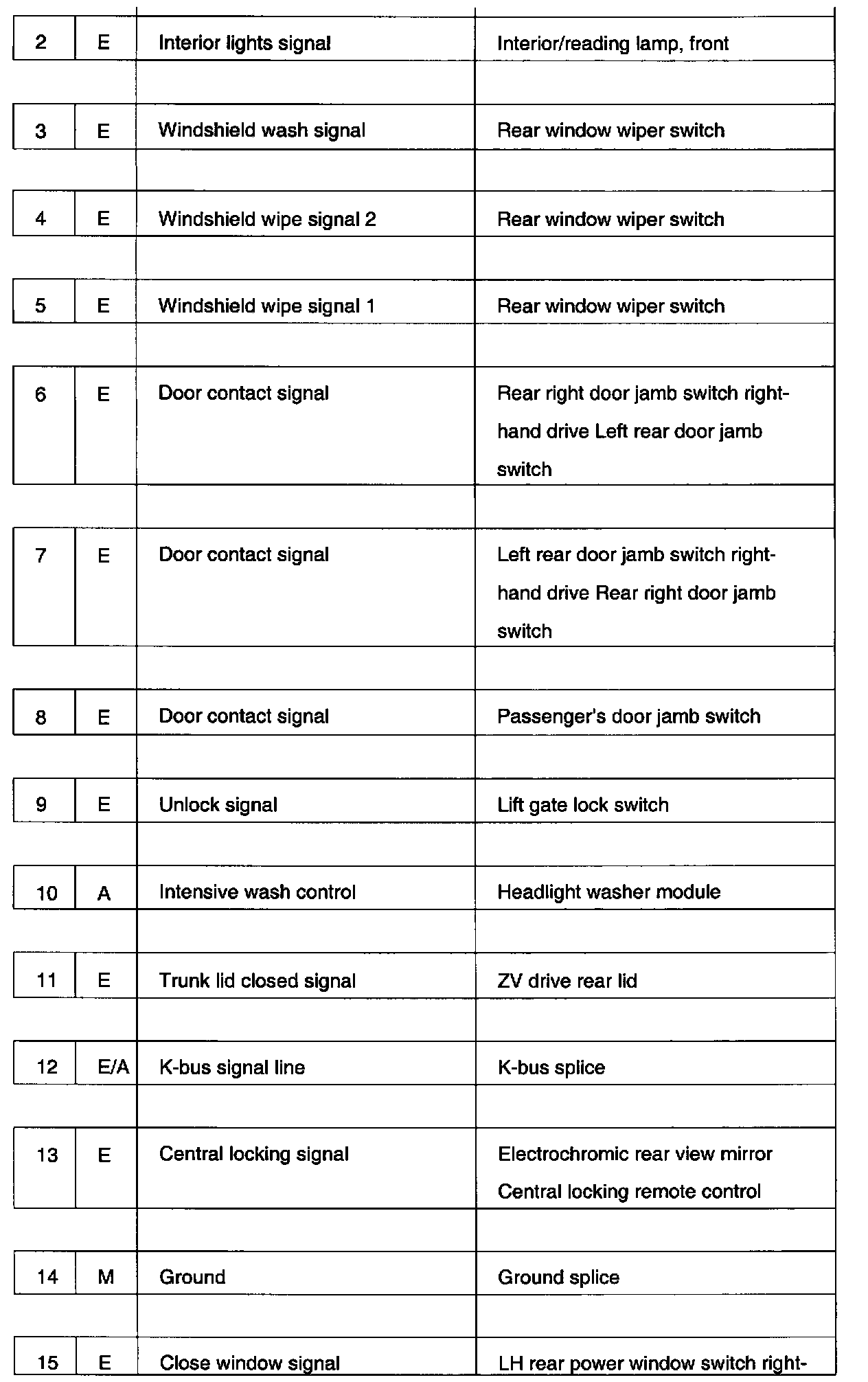

Pin assignments at connector X253:



Pin assignments at connector X253:



Pin assignments at connector X253:

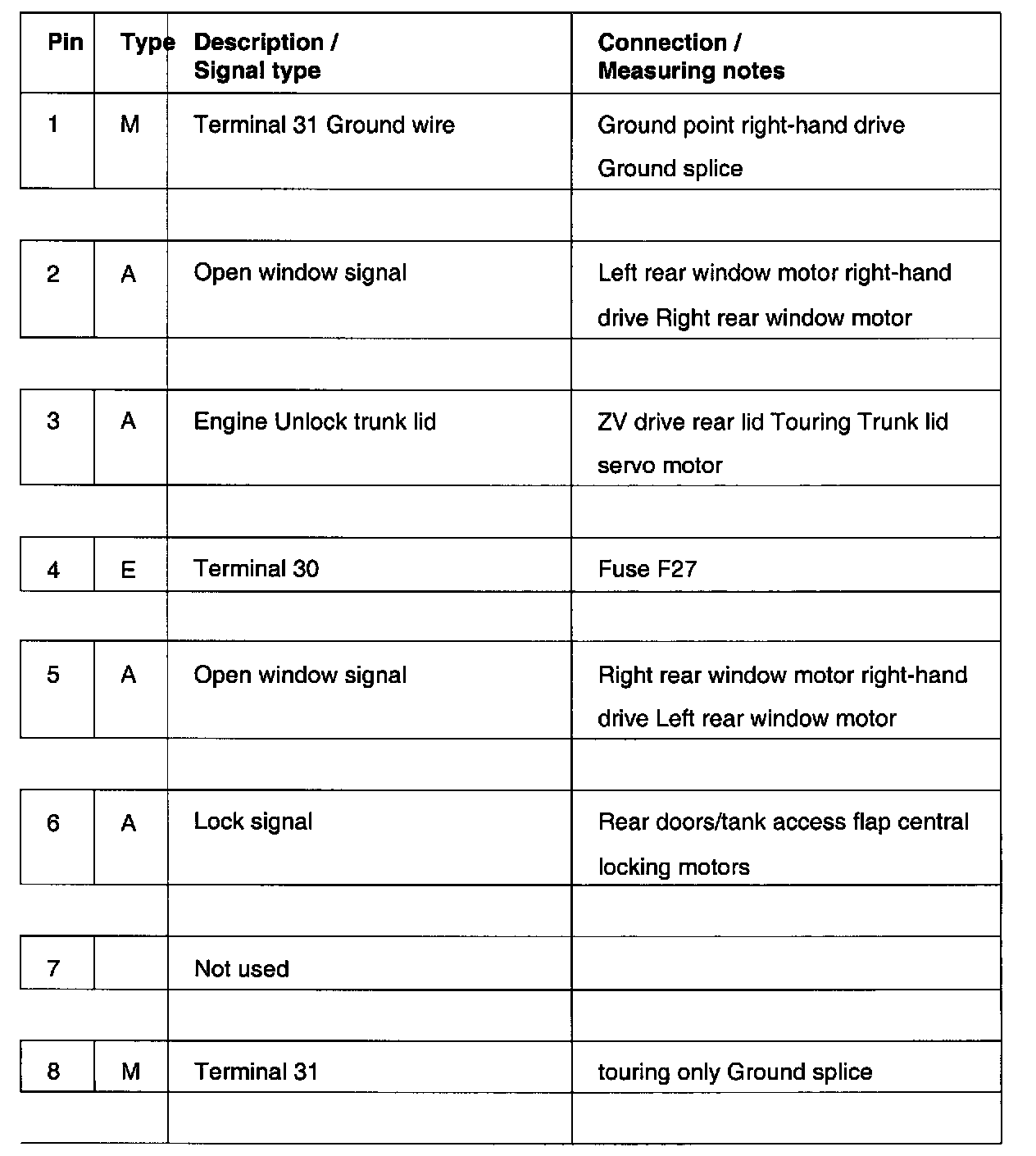

Pin assignments at connector X254:



Pin assignments at connector X254:

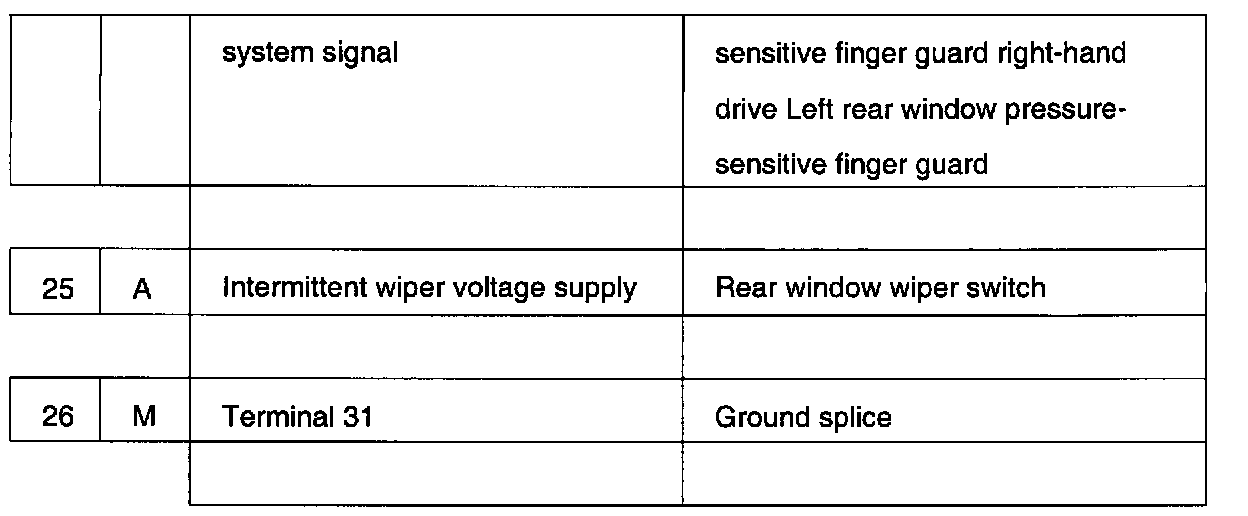

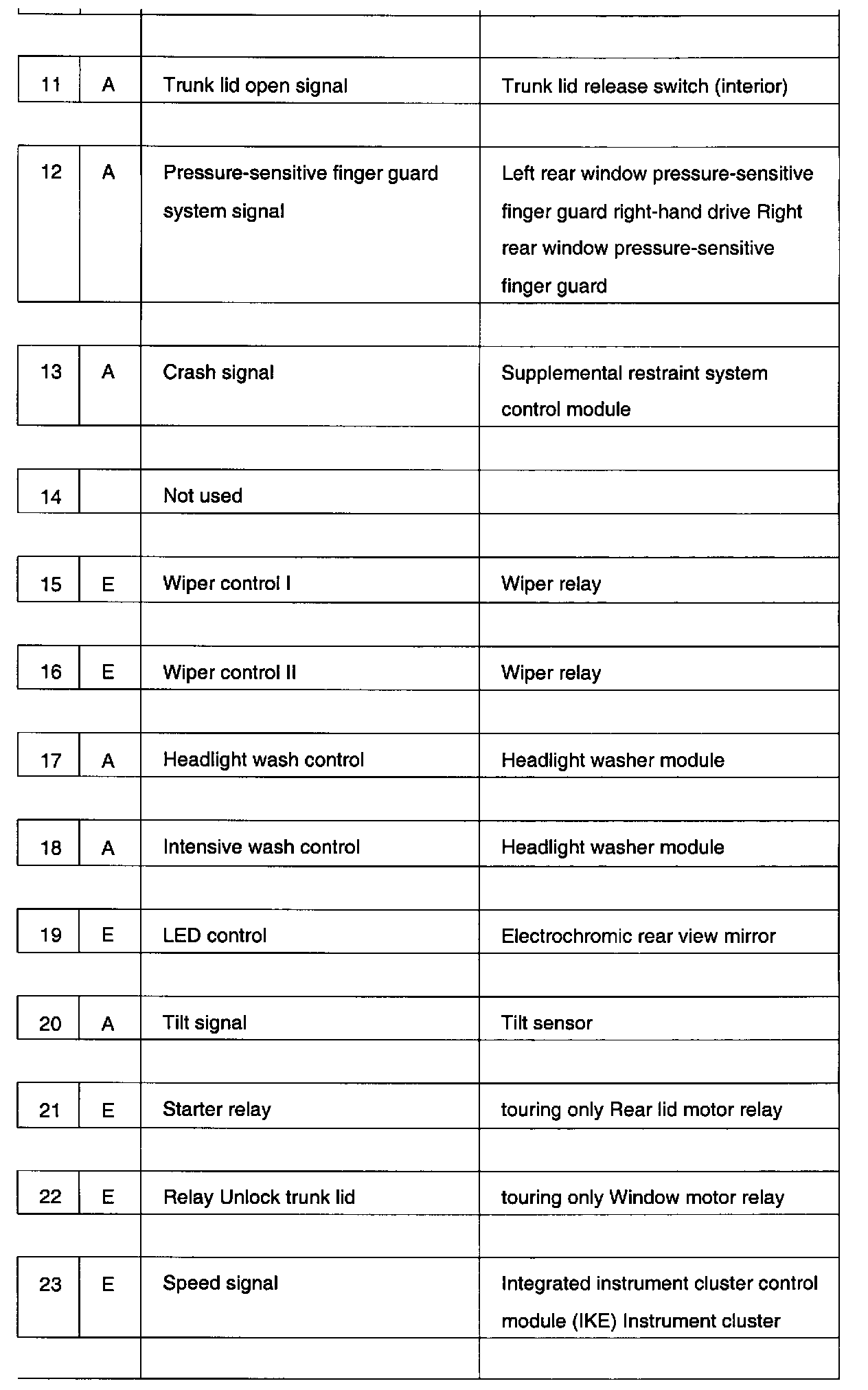

Pin assignments at connector X332:



Pin assignments at connector X332:



Pin assignments at connector X332:
