Replacing Video Module For on-Board Monitor (Saloon)

If necessary, remove CD-changer,
refer to Replacing CD Changer
Open flap in rear left side panel.

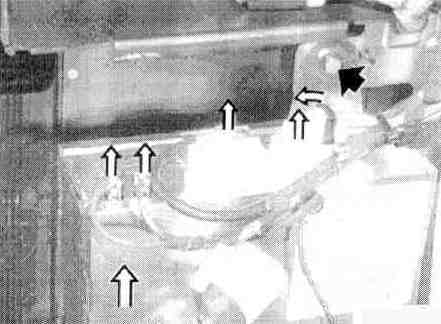

Pull off connectors. Unfasten screw and pull video module upwards to remove.





Installation:

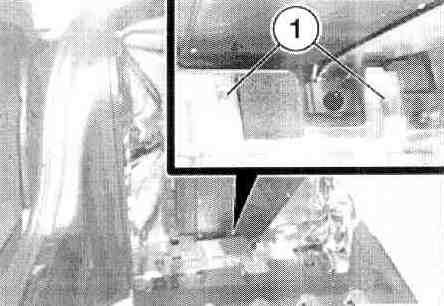

Fit video module on the guide bolts (1).
