Base On Board Computer

Base - On Board Computer

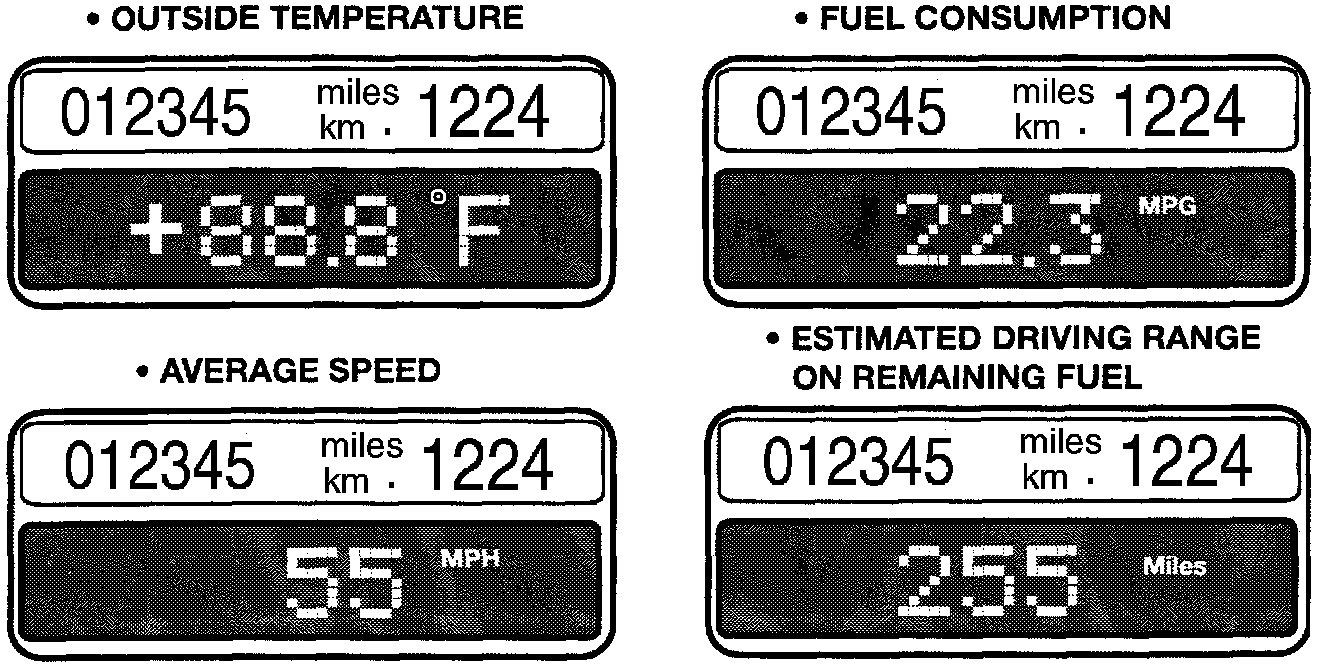

The On Board computer information on the base variant cluster can only be displayed in the center matrix The following information can be displayed:







When KL R is switched ON, the outside temperature will be displayed. To call up any other function, the turn signal lever must be pressed and released. The other functions are than displayed one after the other. A blank field is provided after the average speed display to allow the driver to switch off the display.

A freeze warning is incorporated in the BC. If the temperature drops below 37 °F, the gong will sound and the temperature display will flash in the BC. Pressing the turn signal lever will cancel the display.

The temperature display in the base on board computer can be switched from Fahrenheit to Celsius by pressing the instrument cluster button and holding it while cycling the ignition key. During this procedure, the base instrument cluster also produces a "temperature changeover signal" on the K-bus for the IHKA to switch over the control panel/module to match the display in the instrument cluster. This feature is only available with the base instrument cluster.

Two of the displays "Average Fuel Consumption" and "Average Speed" can be reset to start new calculations. To reset the displays, press and hold the turn signal lever, for longer than one second, when the function is called up. The BC will than start to compute a new average value.
