Home >> BMW >> 2003 >> 330Ci Convertible (E46) L6-3.0L (M54) >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Drive >> Motor Electronics MS45 (DME Digital Motor Electronics MS45) >> Engine Cooling >> Coolant Temperature, Engine

Coolant Temperature, Engine

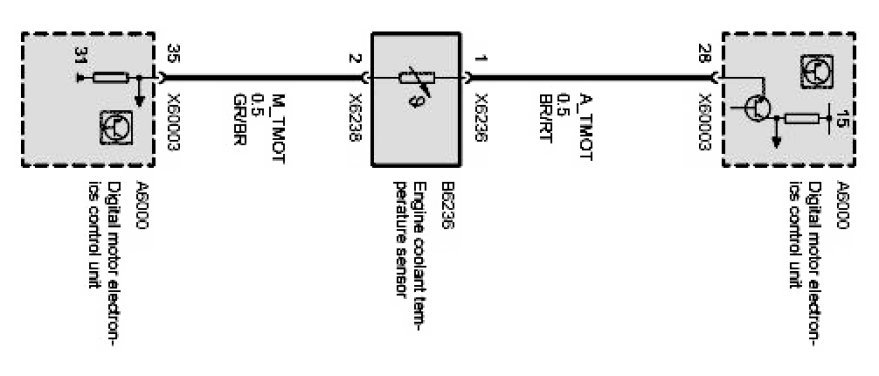

Engine Coolant Temperature Sensor:
