Lumbar Support, Passenger Side
Lumbar Support, Passenger Side

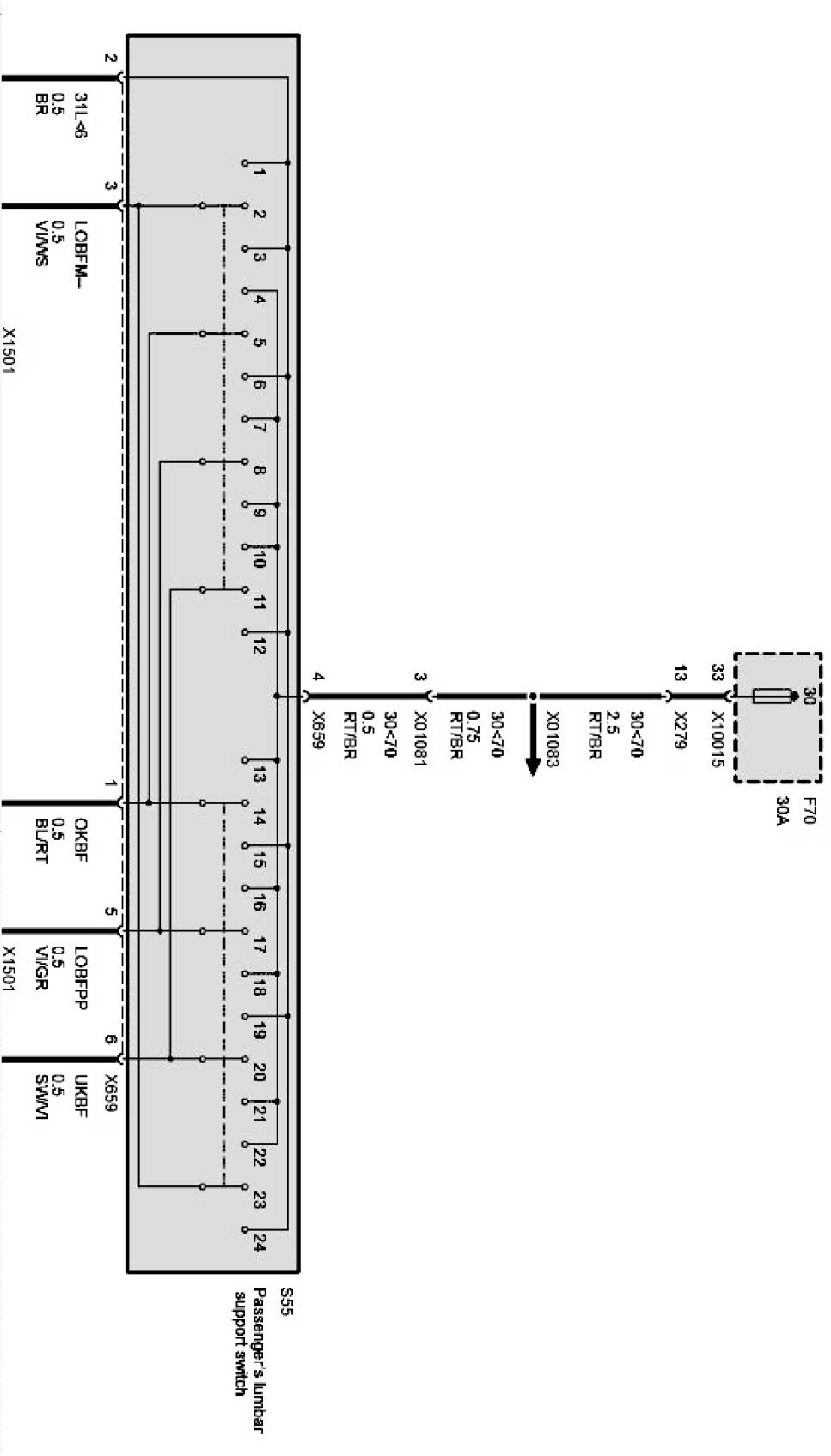

Passenger's lumbar support with electric seat adjustment Part 1:

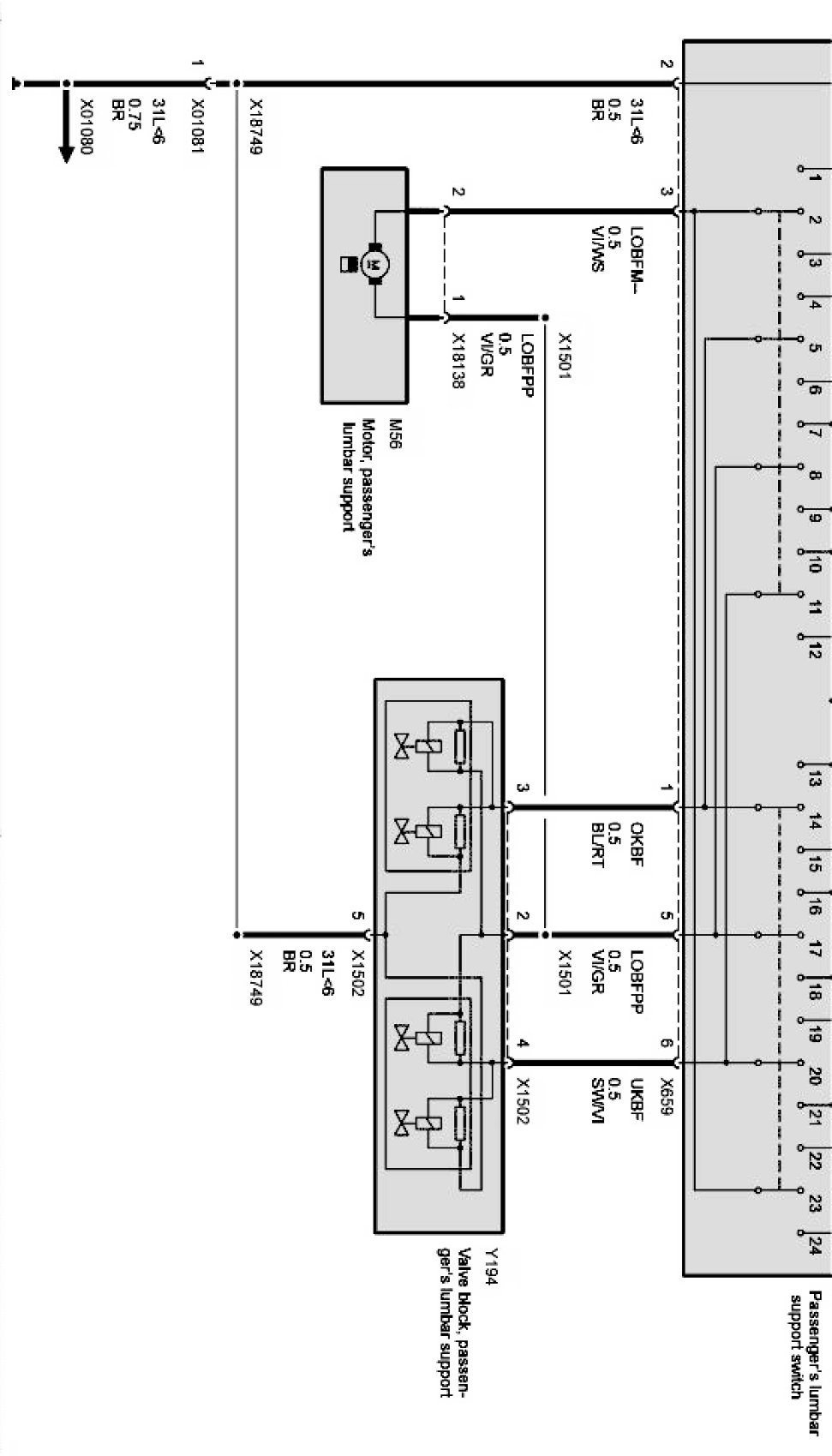

Passenger's lumbar support with electric seat adjustment Part 2:
