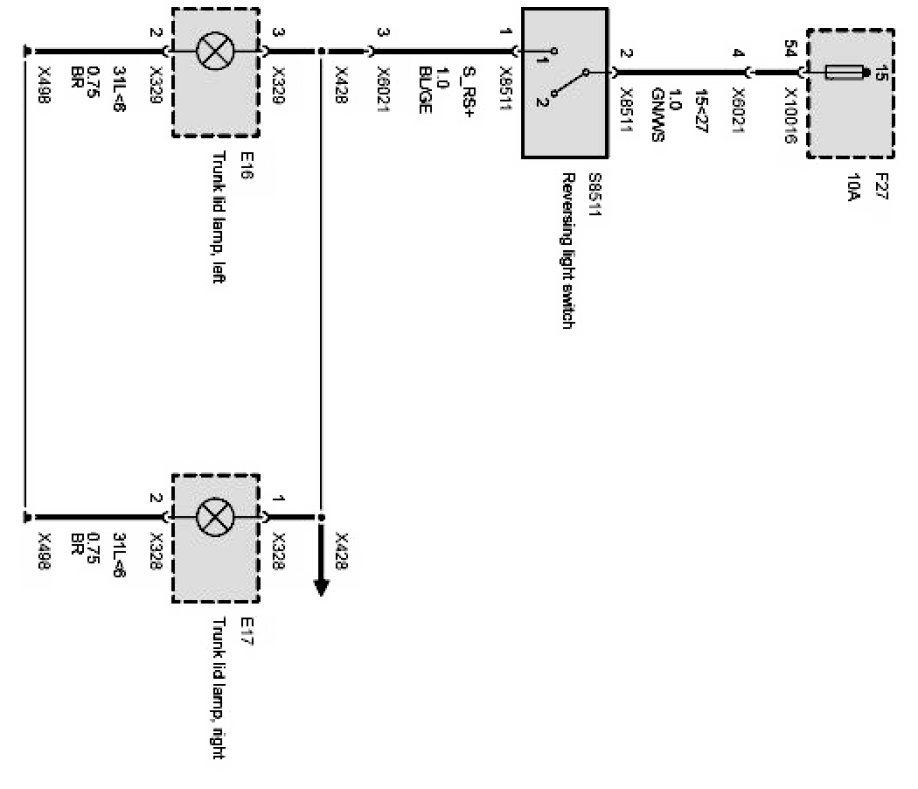

Reversing Light Switch (Without Automatic Transmission)
Reversing Light Switch (Without Automatic Transmission)
Backup lights:
