Home
>>
BMW
>>
2003
>>
330Ci Convertible (E46) L6-3.0L (M54)
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Body
>>
Heating and A/C Functions (IHKA Integrated Automatic Heating/A/C or IHKR Integrated Heating/A/C Regulation or Heater Control)
>>

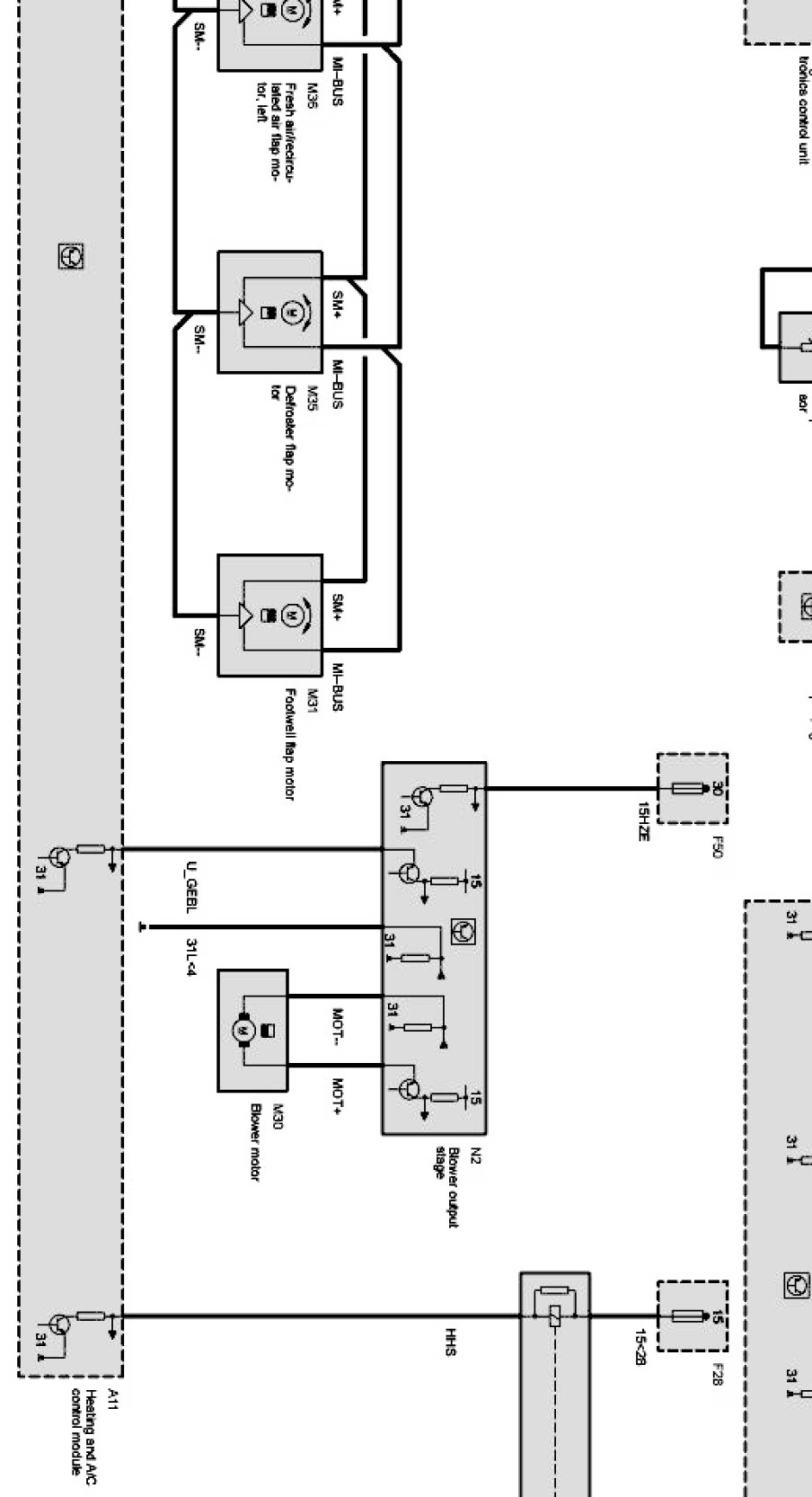

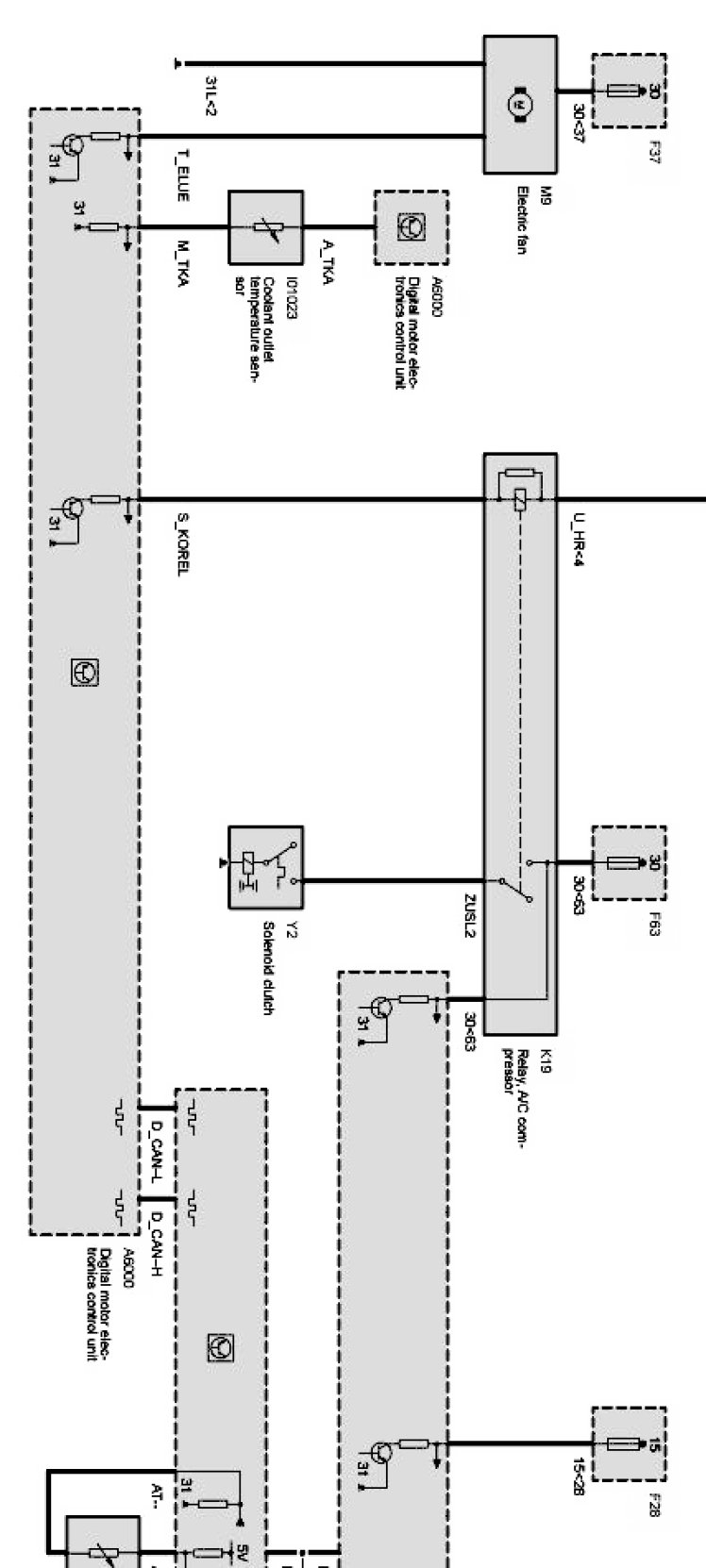

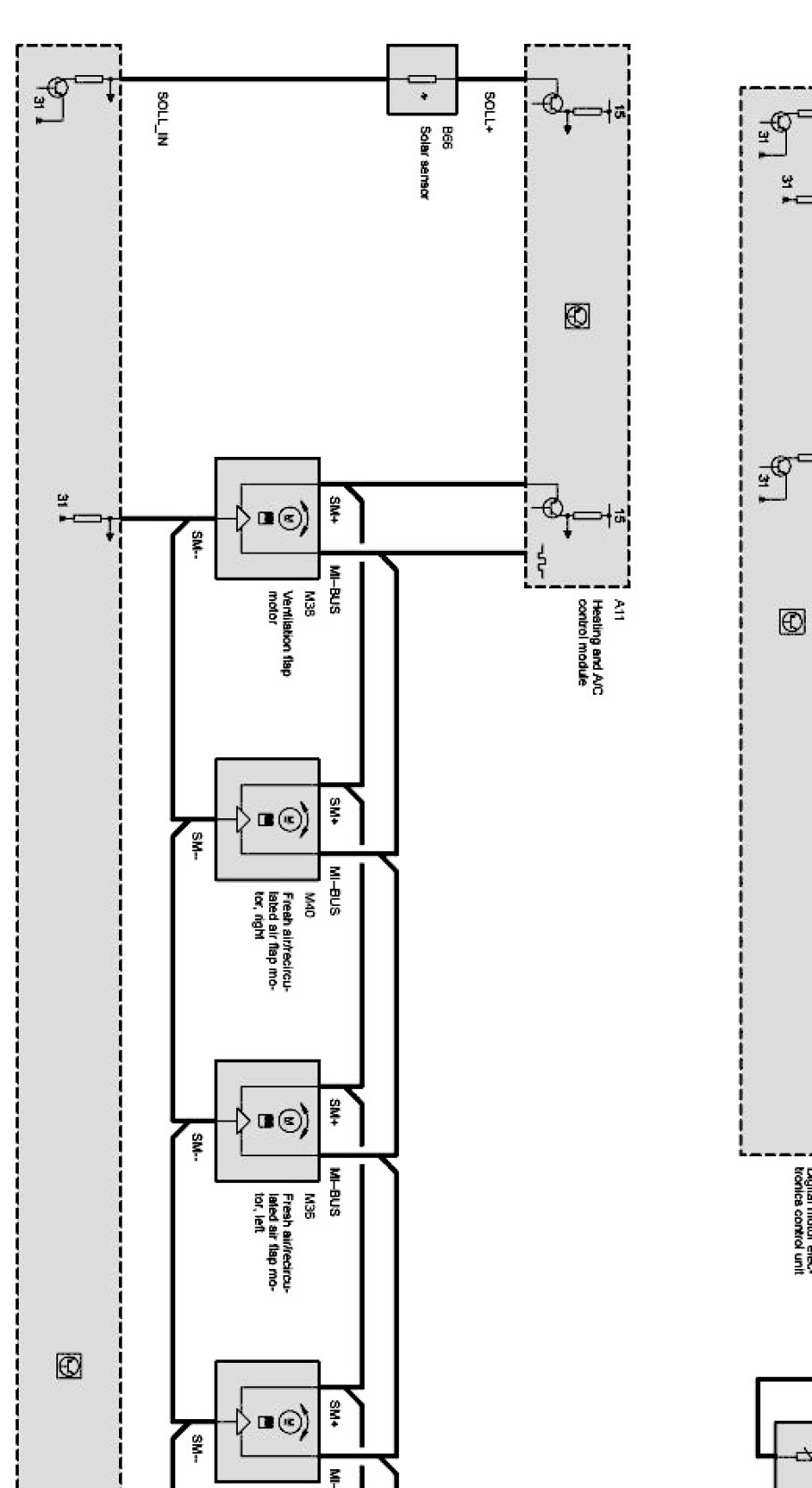

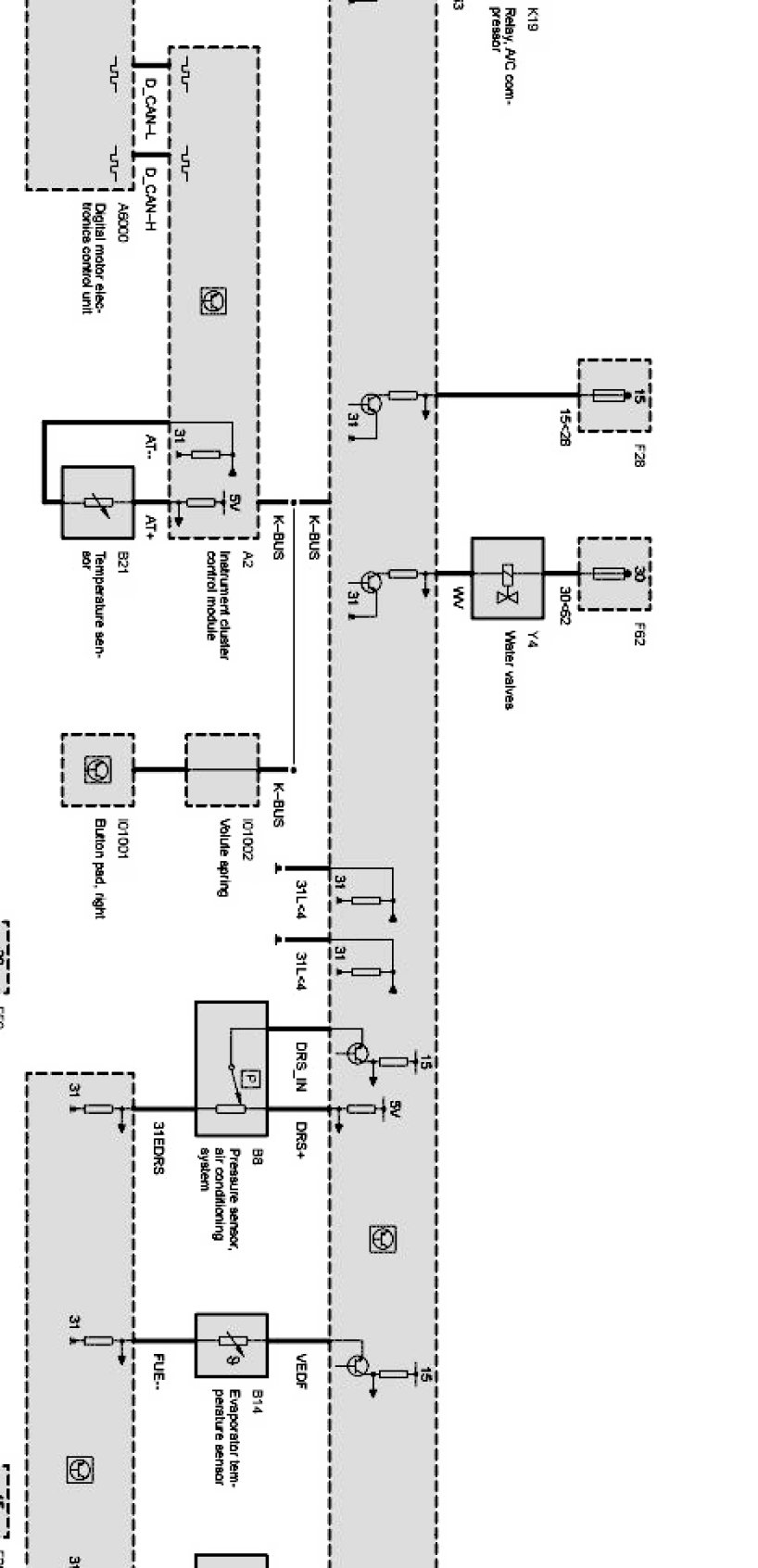

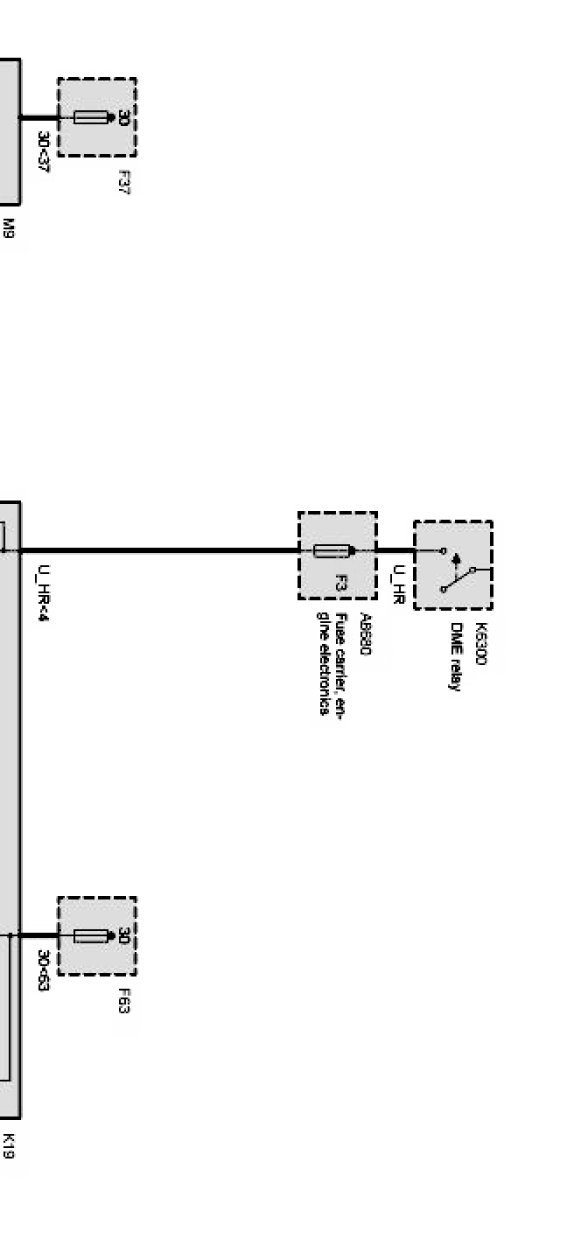

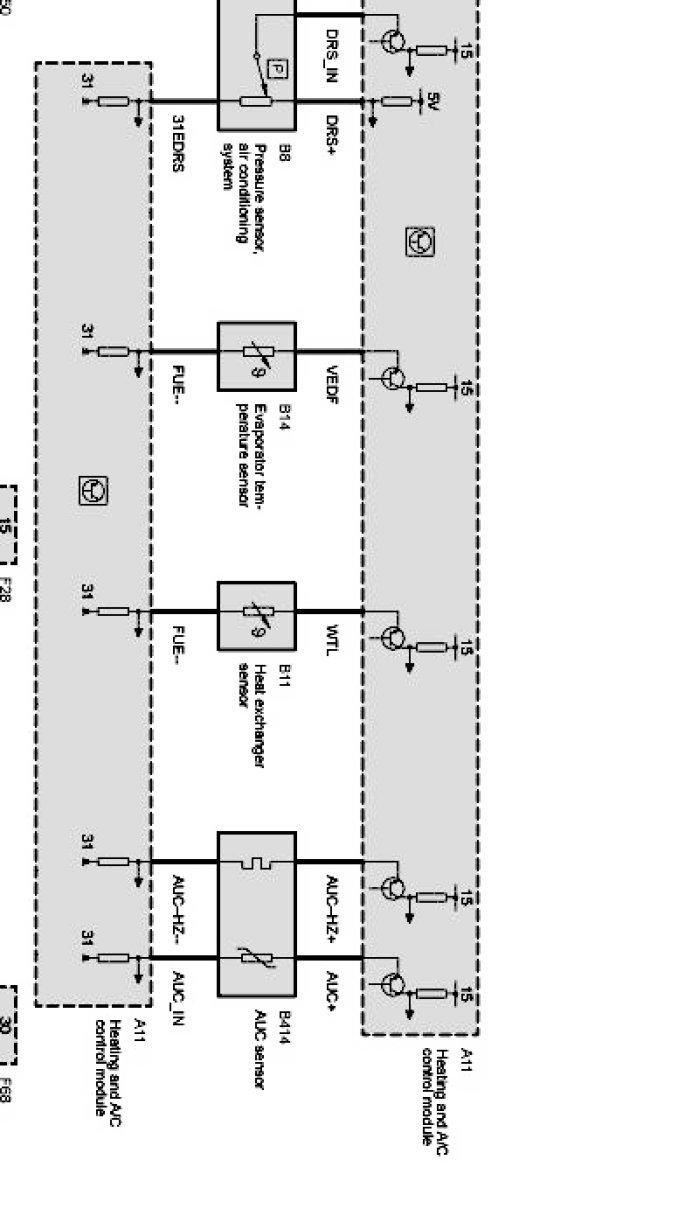

Heating and Air Conditioning Functions (( DME MS42 or Convertible ) With IHKA)
Heating and Air Conditioning Functions (( DME MS42 or Convertible ) With IHKA)
