BMW
>>
1999
>>
Z3 Coupe (E36/7) L6-2793cc 2.8L DOHC (M52 TU)
>>
Repair and Diagnosis
>>
Powertrain Management
>>
Computers and Control Systems
>>
Data Link Connector
>>
Diagrams
>>
Electrical Diagrams
>>

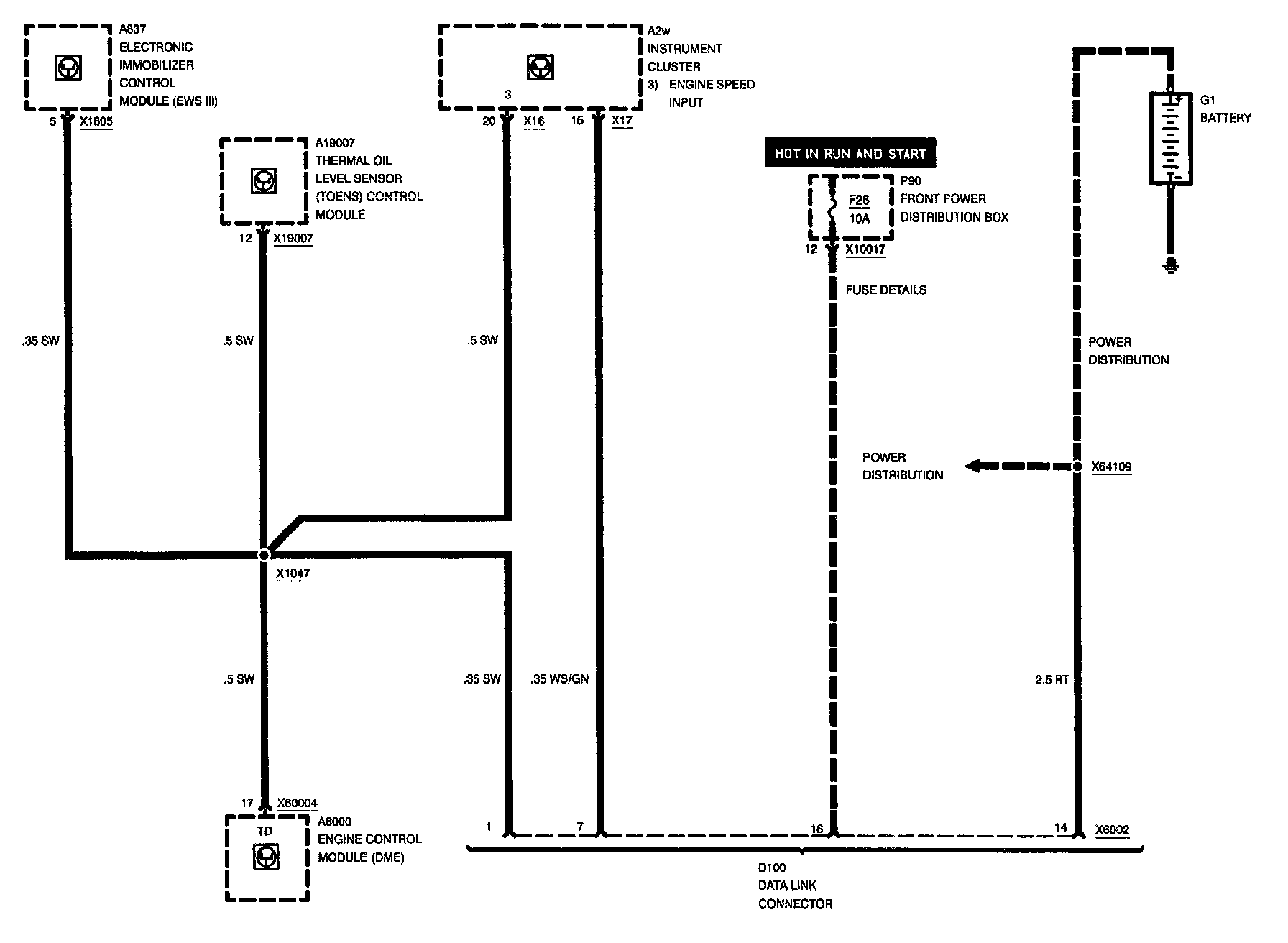

Data Link Connector, Pins 1, 7, 14 and 16
Data Link Connector, Pins 1, 7, 14 and 16
Data Link: Data Link Connector, Pins 1, 7, 14 And 16:
