Curiosii for ever!
: Car repair manuals for everyone.
Home
>>
BMW
>>
1999
>>
Z3 Coupe (E36/7) L6-2793cc 2.8L DOHC (M52 TU)
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Wiper and Washer Systems
>>
System Diagram
>>
Wiper/Washer Module
>>
High
High

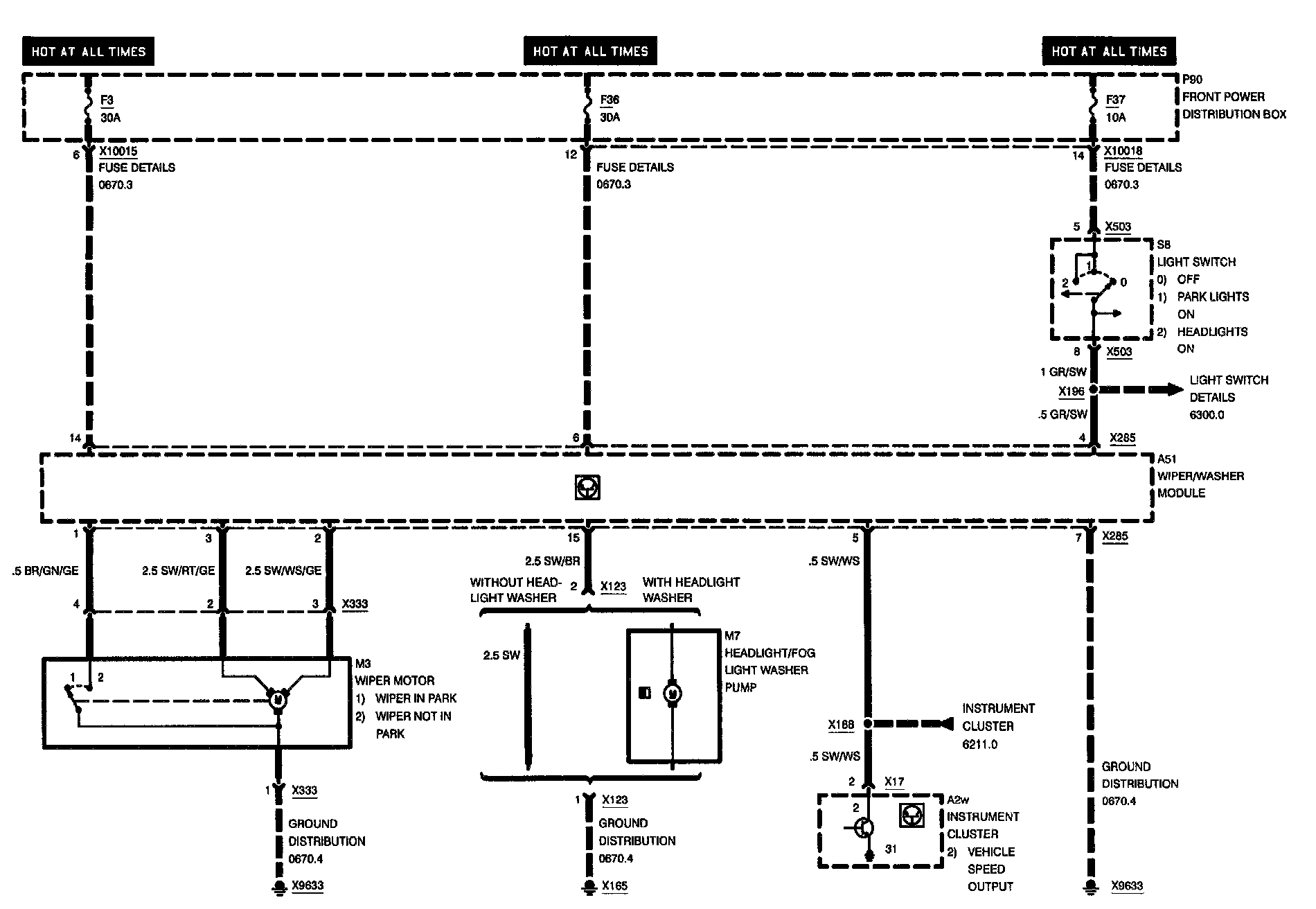

Wiper/Washer Module : High:

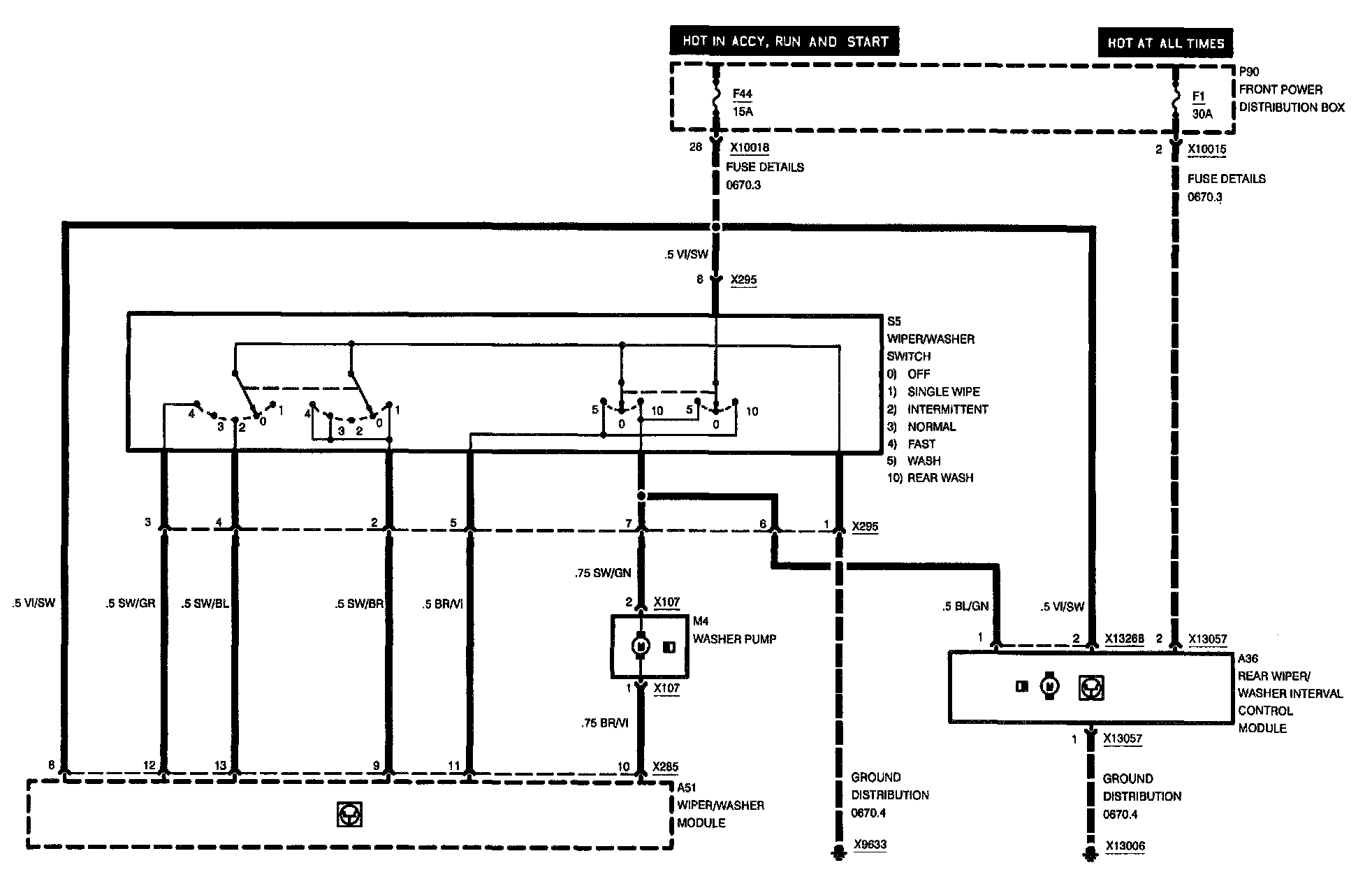

Wiper/Washer Module : High - Roadster:

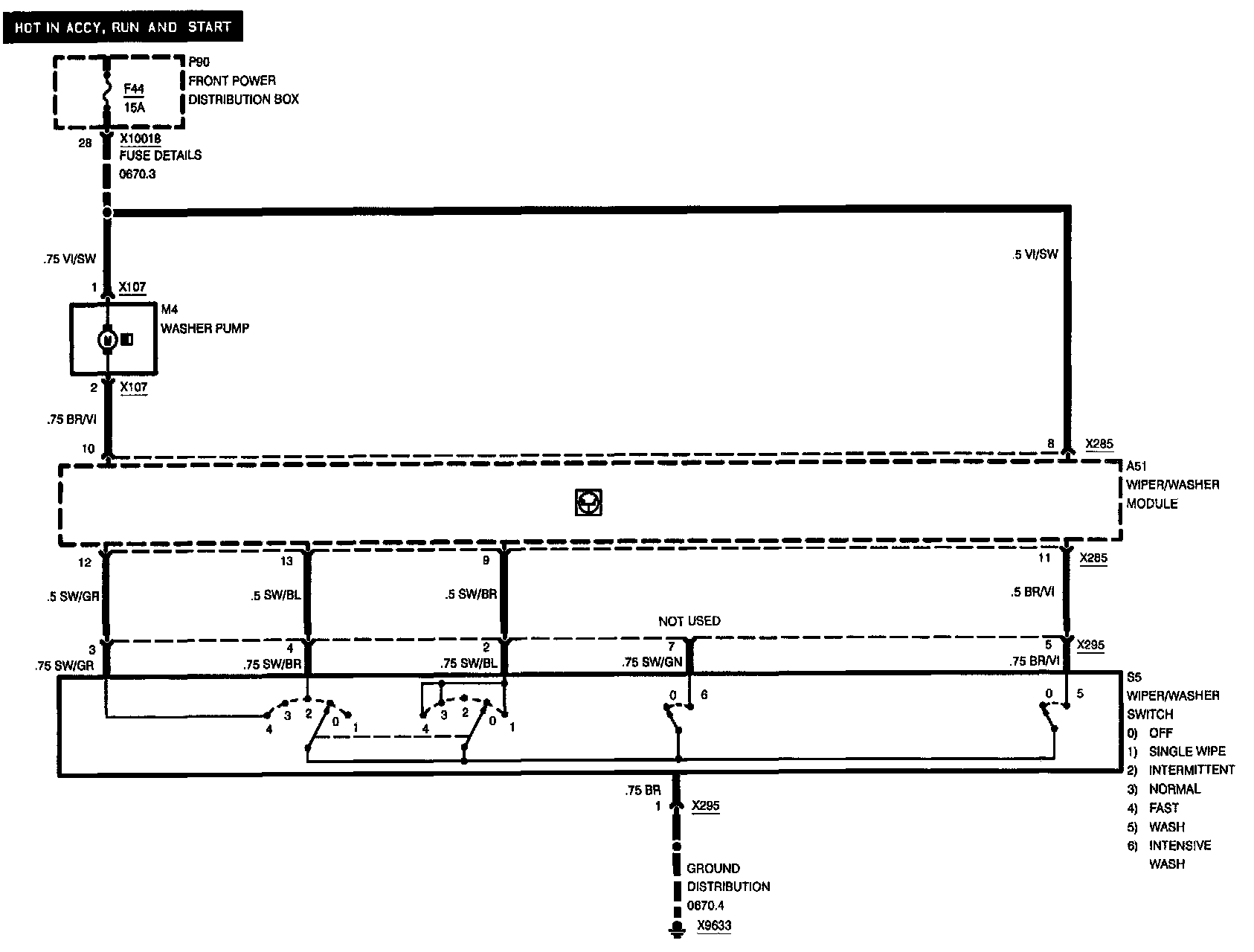

Wiper/Washer Module : High - Coupe:
