Home
>>
BMW
>>
1999
>>
M Roadster (E36/7) L6-3152cc 3.2L DOHC (S52)
>>
Repair and Diagnosis
>>
Powertrain Management
>>
Transmission Control Systems
>>
Diagrams
>>
Electrical Diagrams
>>
Block Diagram
Block Diagram

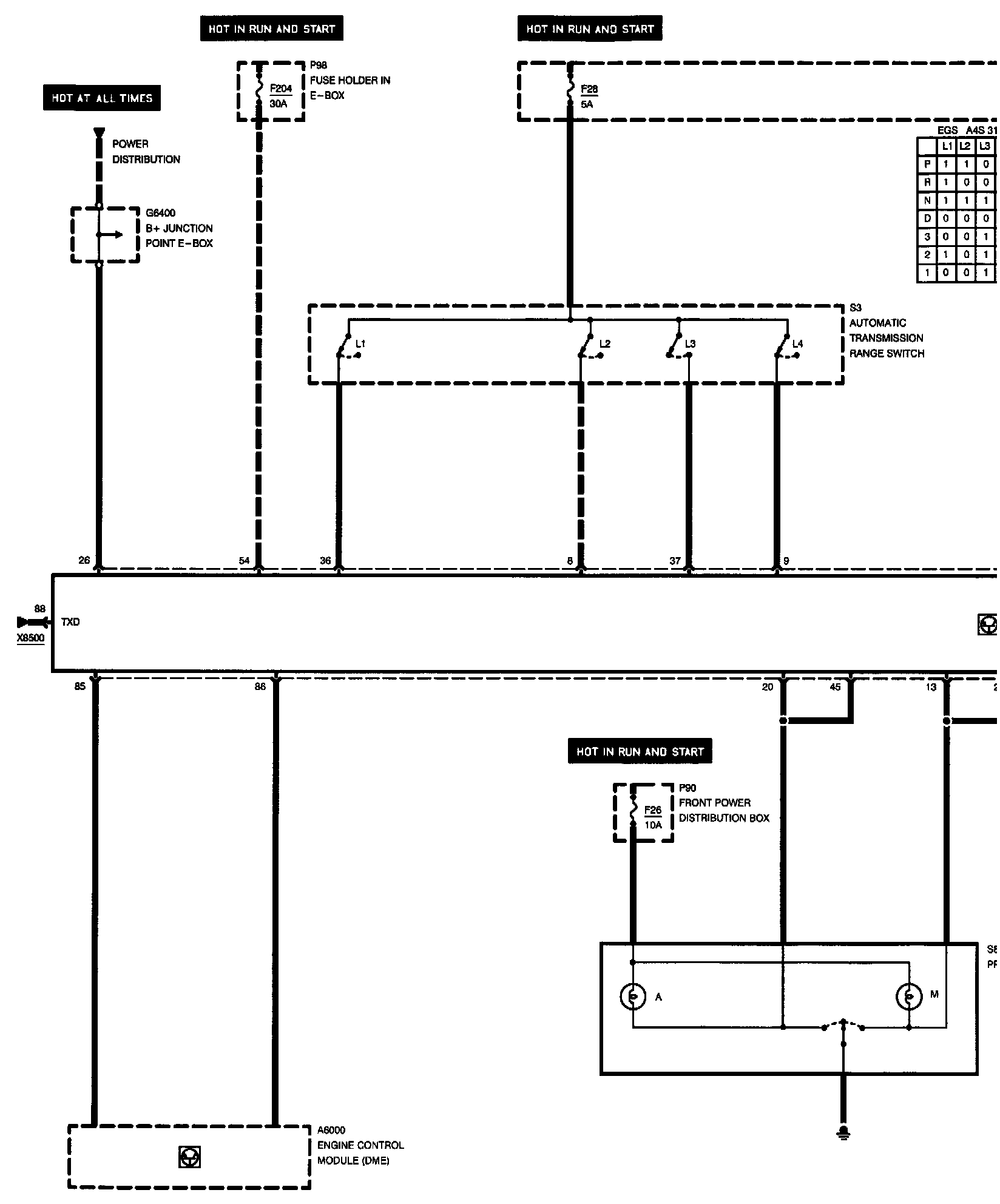

���"Ĥ�"Electronic Transmission Control (EGS A4S 310R): Block Diagram:
