Replacing the Controller For the Rear Fan

Removing and installing/Replacing the controller for the rear fan

Remove complete rear fan.

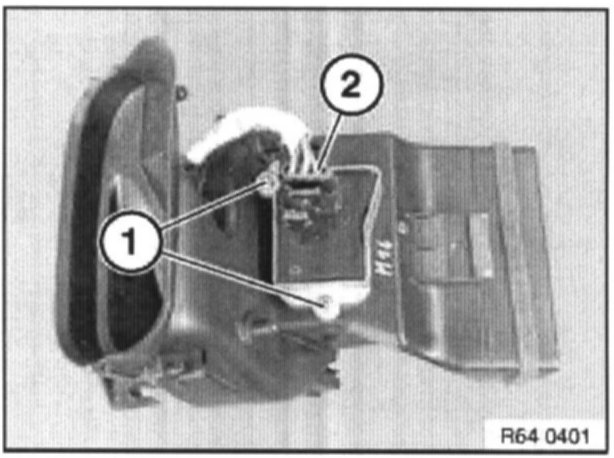

Pull off plug (2). Release screws (1) and remove controller.
