Cellular Phones - Identity Transfer Kit: Overview

Group 84
Phone,
Navigation Systems

Bulletin Number
84 06 97

Woodcliff Lake, NJ
May 1998
Product Engineering

This Service Information bulletin supersedes S.I. 84 06 97 dated November 1997 which should be removed and discarded from your S.I. binder.

Changes to this revision are identified by a black bar.

SUBJECT:
Identity Transfer Kit for CMT 5000VR and CPT 6000VR Phones

MODEL:
E39, E38

Situation:

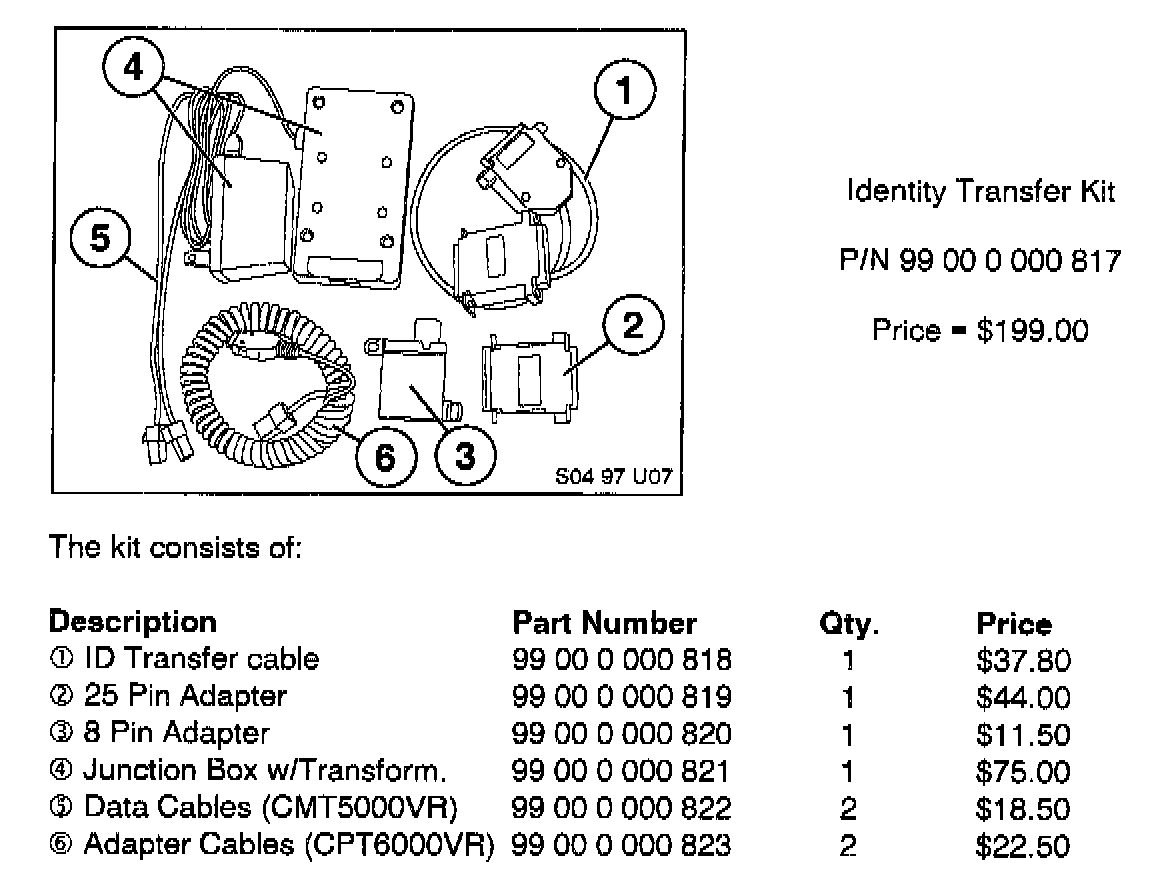

The new Identity Transfer Kit (P/N 99 00 0 000 817) allows transferring the NAM (Number Assignment Module) programming and repertory memory information (names and phone numbers) from a transceiver diagnosed as defective into a replacement transceiver for CMT 5000VR, CPT 6000VR phones.

Utilizing the equipment eliminates the need for the technician and/or customer to reprogram such information manually in the event of a transceiver replacement.

Important:
Unfortunately, the ESN (Electronic Serial Number) of the transceiver cannot be transferred during the procedure, due to FCC regulations on newer generation equipment. The local cellular carrier has to be contacted to transfer the new ESN number. Also, the customer has to reprogram the voice tags into the memory of the phone.





Distribution of the following tools will be through the Automatic Tool Shipment Program. Additional tools may be purchased through your PDC. Please refer to Parts Information bulletin I-24 dated 4/95 for tool warranty details. All prices in this bulletin are introductory prices. Introductory prices are only valid during the Automatic Tool Shipment.
