A/T - Overview Of New Model: Overview

Group 24
Automatic Transmission

Bulletin Number
24 75 98

Woodcliff Lake, NJ
January 1999
Product Engineering

This Technical Reference Information supersedes TRI 24 75 98 dated September 1998 which should be removed and discarded from your binder.

Changes to this revision are identified by asterisks.

SUBJECT:
Automatic Transmission ASS 360R (5L40-E).

MODEL:
E46 - 323iA, 328iA as of 06/98 production
E39 - 528iA as of model year 2000 production

Situation:

With the introduction of the E46 (323iA and 328iA) and E39 (528iA as of 09/99) a new 5 speed Automatic Transmission will be introduced. The new transmission is manufactured by General Motors Powertrain Strasbourg and is designated as A5S360R (5L40-E).

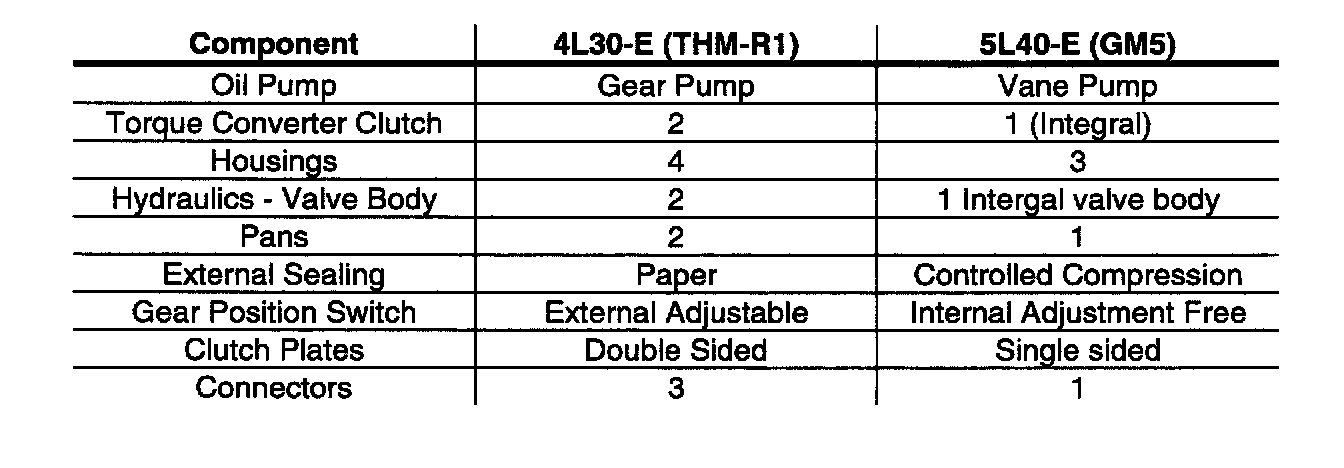

The advantages/improvement of the 5L40-E. over the THM-R1 (4L30-E) are listed in the illustration.

Technical Data:

Transmission type: 5 speed automatic transmission

Transmission Capacity: Max torque input at 4200 RPM = 360NM

Transmission Ratios: 1st gear 3.45
2nd gear 2.21
3rd gear 1.59
4th gear 1.00
5th gear 0.76
Reverse 3.16

Torque Converter: 245 mm dia. torque converter with slip controlled lock up clutch

Transmission Weight: 80 kg (with oil)

Transmission Control: AGS version (Flash Programming):
GS 20

*Transmission Fluid: Lifetime Fill - TEXACO ETL 7045*
