Ignition Lock: Service and Repair

Removing And Installing Or Replacing Steering Lock Cylinder
Remove ring antenna, refer to Accessories and Optional Equipment.

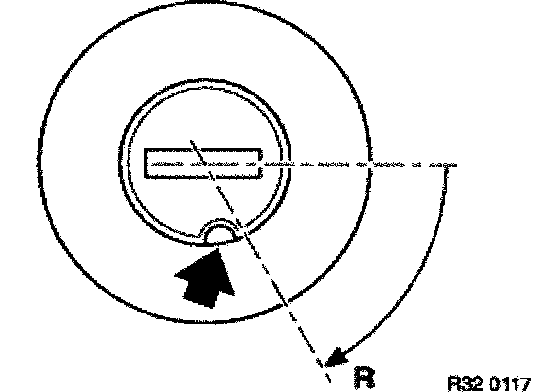

With ignition key, use workshop key for better accessibility, set lock cylinder to "R" position = radio, windscreen wiper, fan.

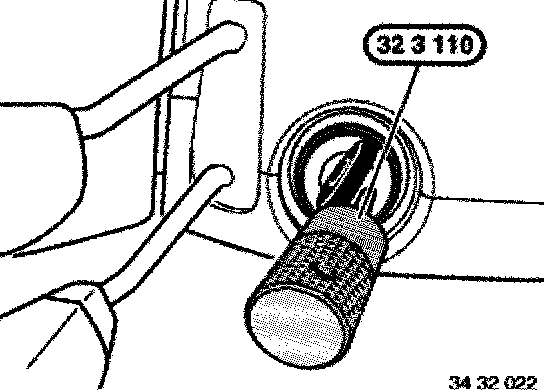

Push special tool 32 3 110 into hole of lock cylinder and swivel handle forward by approx. 90°. Remove lock cylinder.
