Fuel Level Sender - Spanner

04 03 00

Tools and Equipment

January 2000

SUBJECT
Fuel Level Sender Spanner

MODEL
E38, E39, E46 - from Model Year 99

SITUATION
Distribution of the following tool will not be through the Automatic Tool Shipment Program. Additional tools may be purchased through your PDC. Refer to Parts Information bulletin 01 01 95 for tool warranty details. All prices on this bulletin are introductory prices and are only valid during the Automatic Tool Shipment.

TOOL INFORMATION





Fuel Level Sender Spanner
P/N 90 88 6 161 022 - (2 pieces)
Price = $46.25

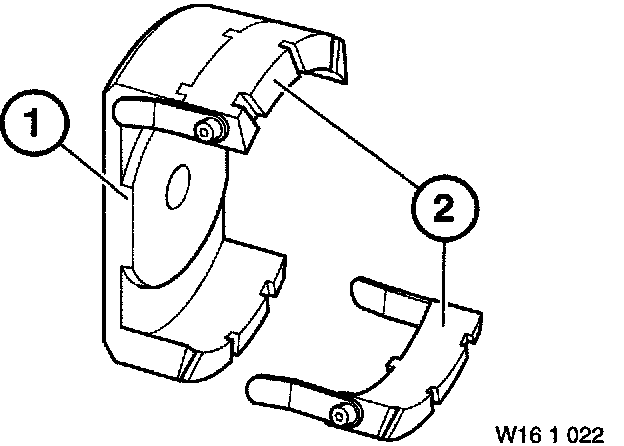

The fuel sending unit spanner nut is now made from
steel (previously plastic). The original removal tool
(PN 88 88 6 161 020 (1)) was made of aluminium.
The new steel spanner nuts can damage the old style tools.

A set of steel jaws (2) have been developed for use
with the old style aluminium tool. Steel jaws are
included with new complete tool orders
(88 88 6 161 020). Refer to repair manual section 16 12 001.
