Tire Pressure Module: Service and Repair

Removing And Installing/Replacing RDC Control Module
Removing glovebox.





Unfasten plug connection (1) and disconnect.

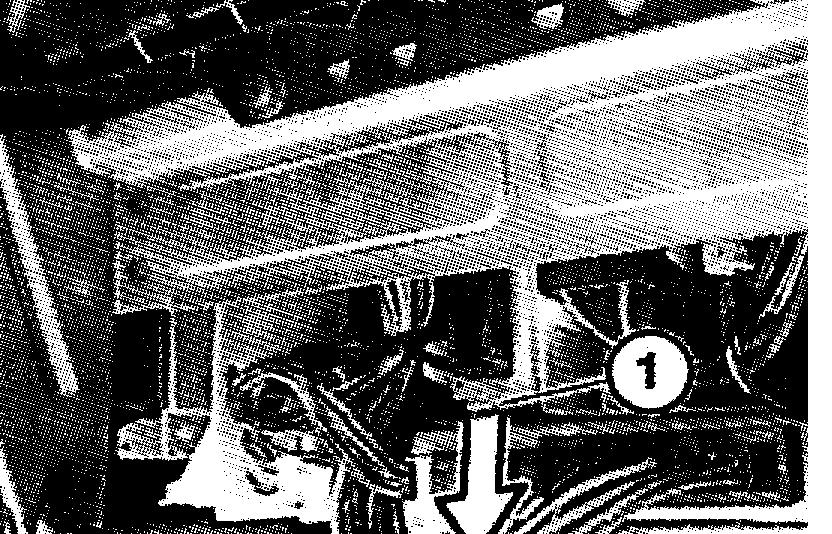

Press lock (1) downwards.

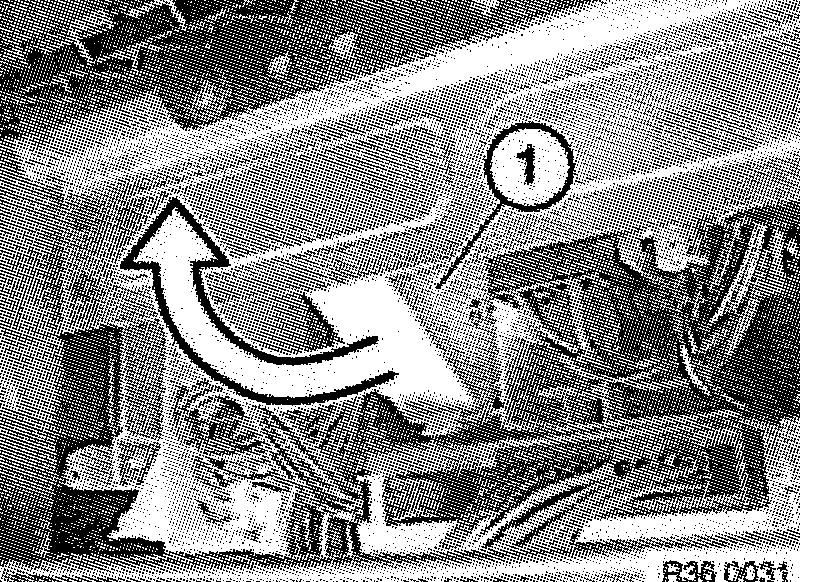

Tilt RDC control module (1) upwards, turn through 90° and remove vertically towards bottom.

Note: Do not damage control module carrier.
