Fluid Filter - A/T: Service and Repair

Remove oil sump on main case, refer to Transmission Pan, Service and Repair.

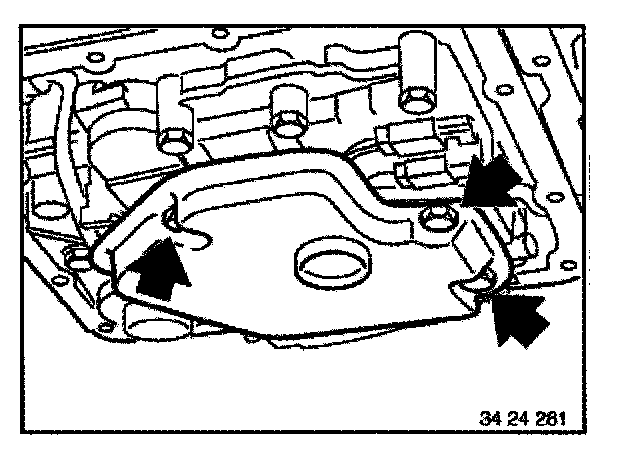

Remove oil strainer.
Unfasten screws with special tool 24 5 180 (socket insert).

Caution!
Bolts have inch threads.

Installation:

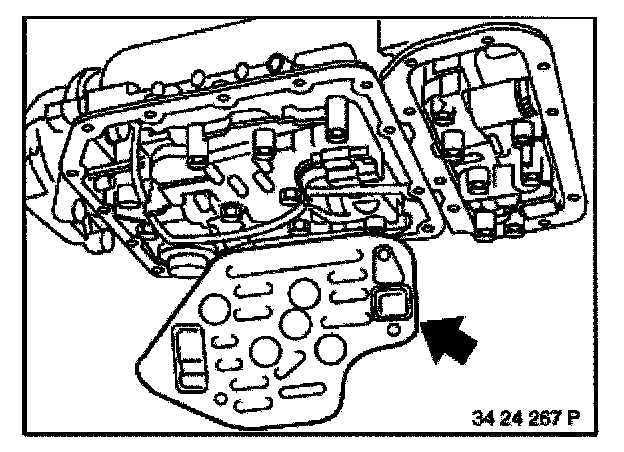

Check gasket between strainer and valve body.





Mount and bolt oil strainer.
Special tool 24 5 180 (socket insert).

Caution!
Only use bolts with inch threads.

Tightening torque, refer to Automatic Transmission/Transaxle, Specifications.
