528i (E39) L6-2793cc 2.8L DOHC (M52 TU)
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
EWD-102 to EWD-200
>>
EWD-160 Engine Control Module Relay
EWD-160 Engine Control Module Relay

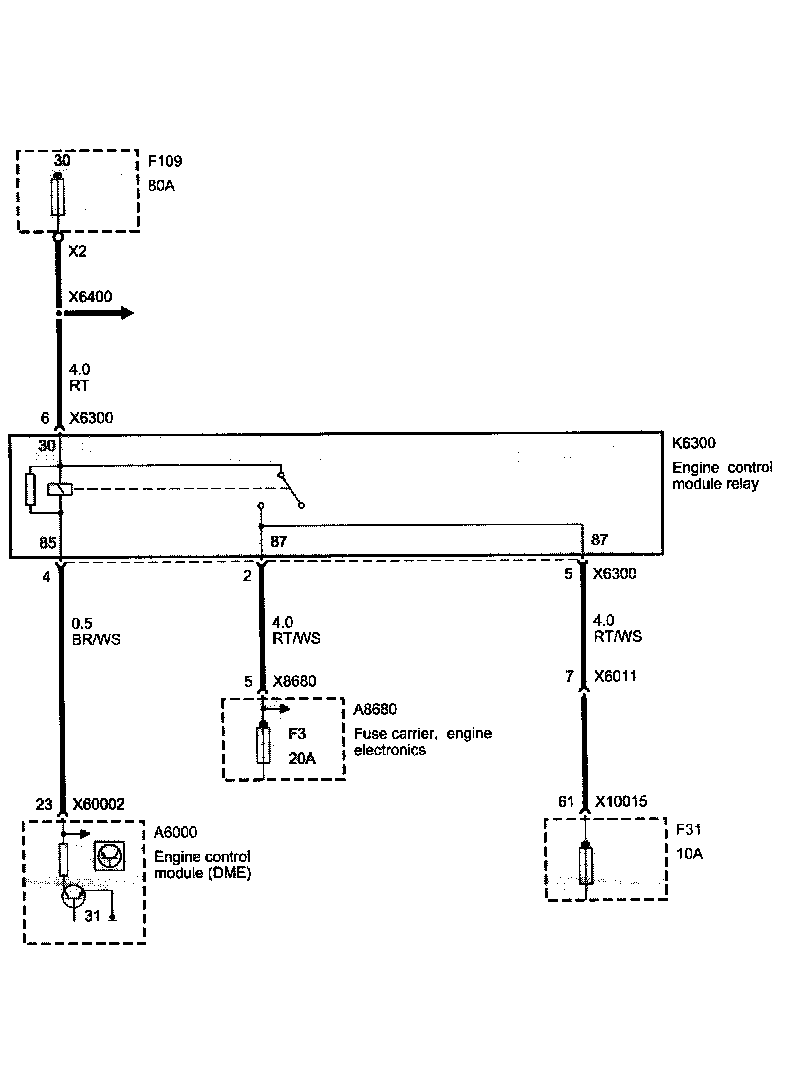

EWD-160 Engine Control Module Relay:
