Home
>>
BMW
>>
1999
>>
528i (E39) L6-2793cc 2.8L DOHC (M52 TU)
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Pin Assignments
>>
Y_Electromechanical Components
>>

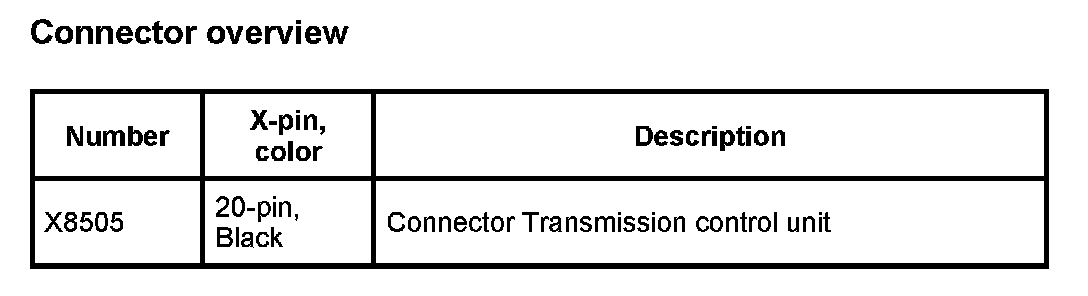

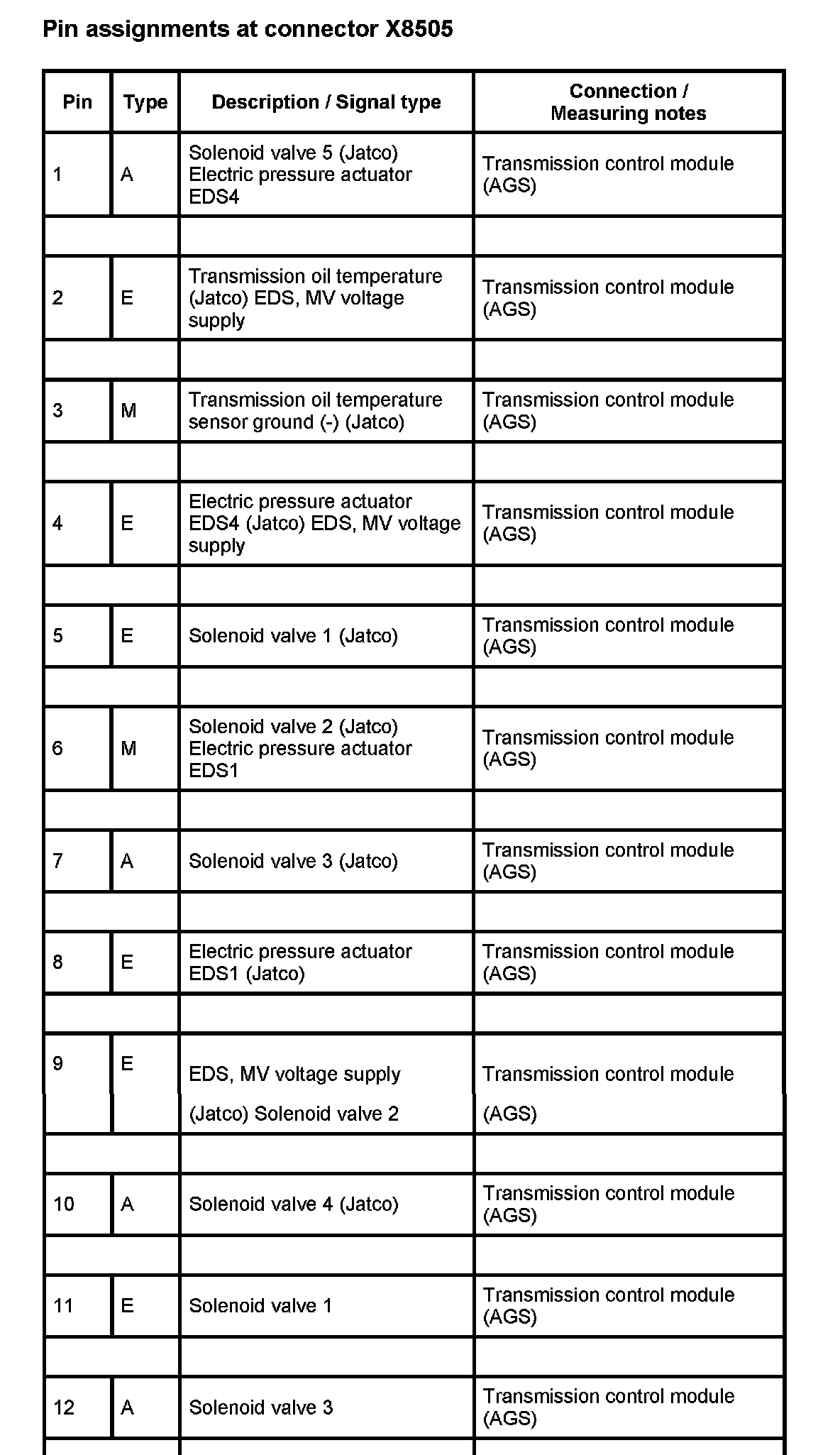

Y8505 Transmission Control Unit (EGS Transmission Control 8.70 or EGS Trans CTRL 8.34) (Pin Assignments)
Y8505 Transmission Control Unit (EGS Transmission Control 8.70 or EGS Trans CTRL 8.34) (Pin Assignments)
