Fuel Filter: Service and Repair

Replacing Fuel Filter

Turn off ignition.







If installed:
Remove engine underguard (1 and 2).

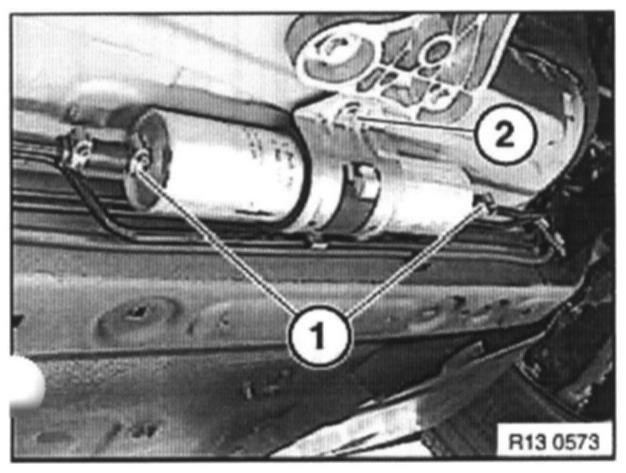

Disconnect fuel teed line at points (1) with special tool 13 3 010.


CAUTION!
Catch and dispose of escaping fuel.


Release hose clips and disconnect fuel lines from fuel filter.

Installation:
Always replace hose clips and fuel hoses.

Release screw (2) and remove filter from retainer.







Installation:

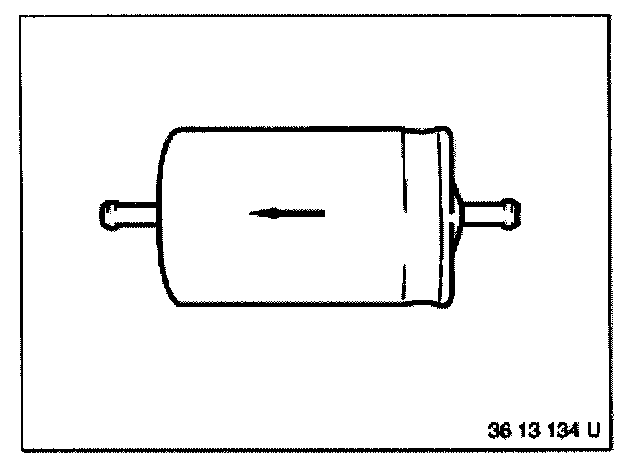

Observe flow direction (arrow).

Arrow must point in direction of fuel injector block.
