Head Protection System - Airbag Replacement: Overview

GROUP 72
Safety Restraint Systems

Bulletin Number
72 06 00

Woodcliff Lake, NJ
June 2000
Service Engineering

SUBJECT:
HPS (Head Protection System) Airbag Replacement on E46 Vehicles

MODEL:
E46 sedan, 3 series produced up to 9/99

Situation:





Since September of 1999, the new type of front Head Protection System airbag was introduced into series production. Only the new type HPS airbags will be available from the BMW Parts Distribution Centers for replacement purposes (e.g. after deployment caused by accident). In case the new style Head Protection System airbag is retrofitted into an E46 sedan vehicle manufactured prior to 09/99, a certain modification to the airbag mounting points in the vehicle is required, and for vehicles manufactured prior to 09/98 also the firing circuit harness must be modified. The table provides part numbers for the new HPS airbags:

For a detailed installation instruction refer to the BMW Technical Information System (TIS) Repair Manual RA 72 12 020.

The procedure included in this Service Information Bulletin provides some additional information and installation hints which are not found in the Repair Manual.

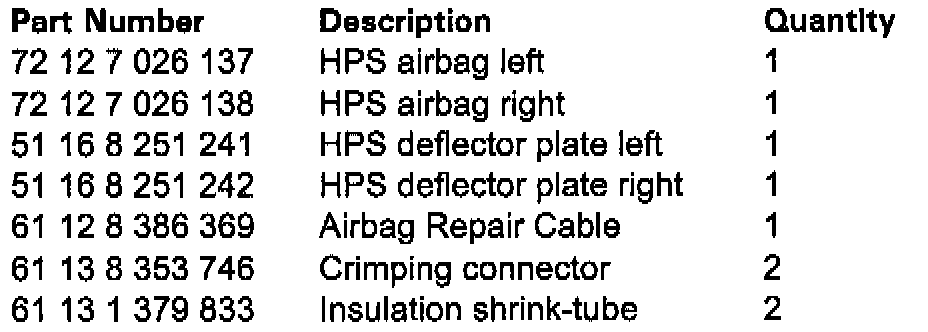

Parts Information:

Warranty Information: For Information only.
