Removing And Installing/Replacing Drier Flask For Air ConditionerReplacing Drier Flask For Air Conditioner

Removing And Installing/Replacing Drier Flask For Air Conditioner


NOTE:
A/C system is drawn off.
Follow instructions for dryer bottle replacement.


M3 only:
Remove right headlight.

All except M3:
Remove fluid reservoir for windshield washer system.

All:

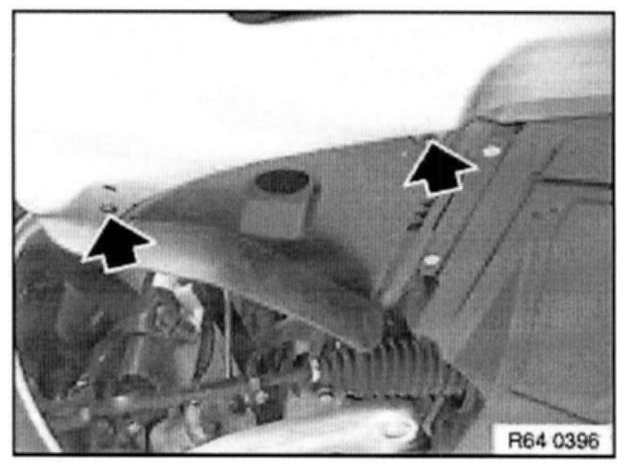

Unfasten screws.

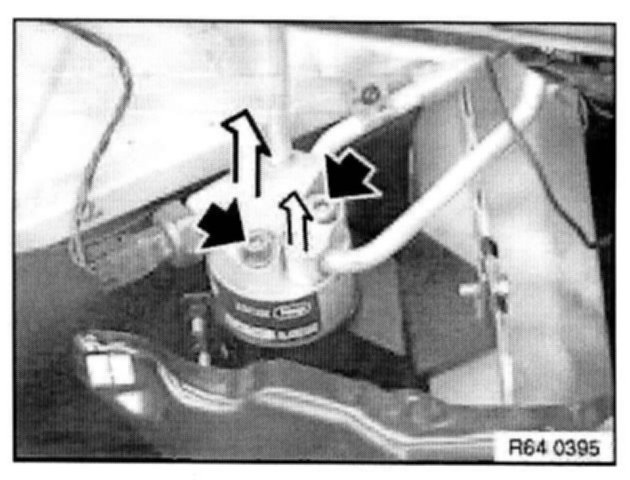

Detach pressure and suction pipes towards top.


NOTE: Provide pressure and suction pipes with plugs if A/C system remains open for longer than one hour.


Installation: Replace sealing rings.

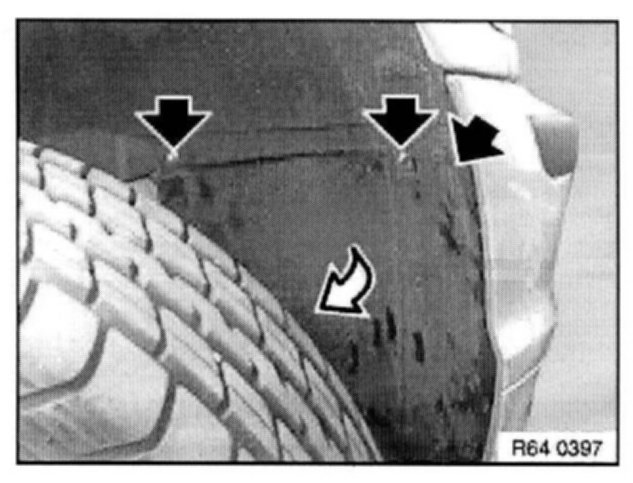

Unfasten screws.







Unfasten screws.
Feed out wheel arch undertrim.

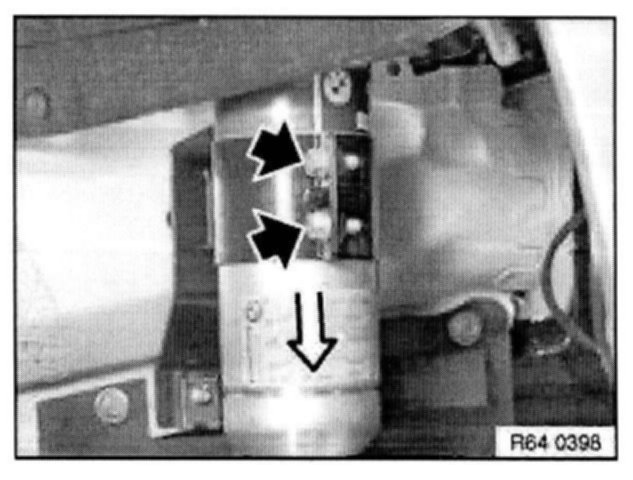

Loosen bolts.
Pull out dryer bottle towards bottom.


NOTE: In event of warranty application, seal line openings with plugs of new dryer bottle.
