Heater Core Temperature Sensor / Switch: Service and Repair

Replacing Temperature Sensor For Heater (In Cover For Heating Element)

Remove heating controls.
If necessary, remove on-board monitor.

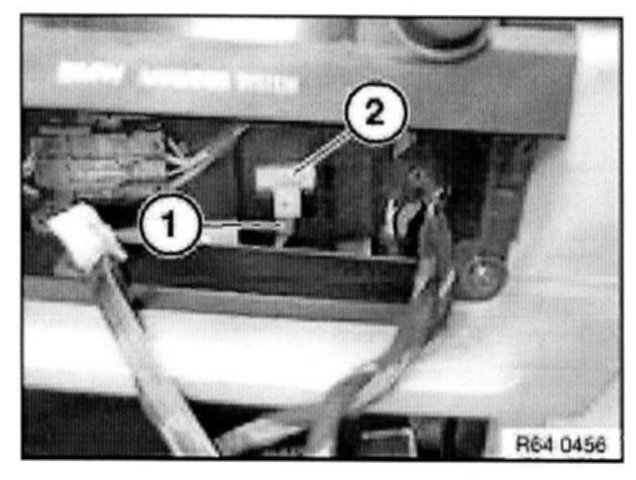

Disconnect plug connection (1).
Remove temperature sensor (2).
