Evaporator Temperature Sensor / Switch: Service and Repair

Replacing Evaporator Temperature Sensor

Remove trim panel for pedal assembly.

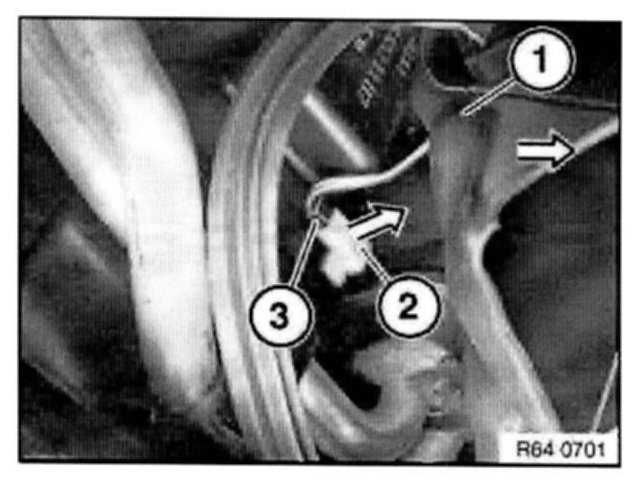

Press back heating duct for left footwell (1) in direction of arrow.
Lever out evaporator temperature sensor (2) in direction of arrow and remove.
Disconnect plug connection (3) and remove evaporator temperature sensor (2).

Installation Note: Ensure evaporator temperature sensor (2) is correctly seated.
