Removing and Installing Heating Control (Heater)

Removing And Installing Heating Control (Heater)


Remove radio.

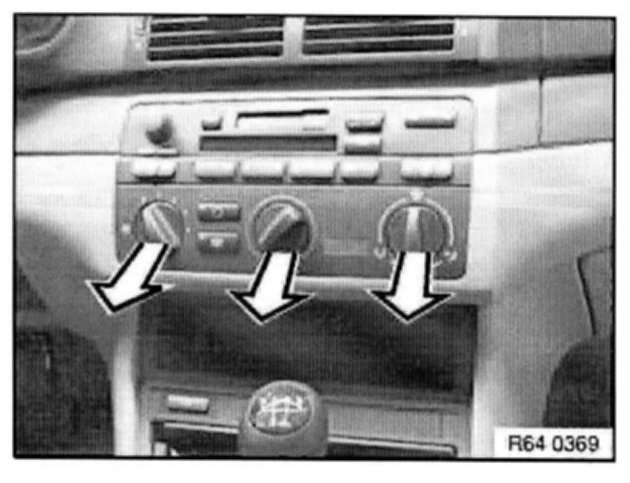

Press down rotary buttons.

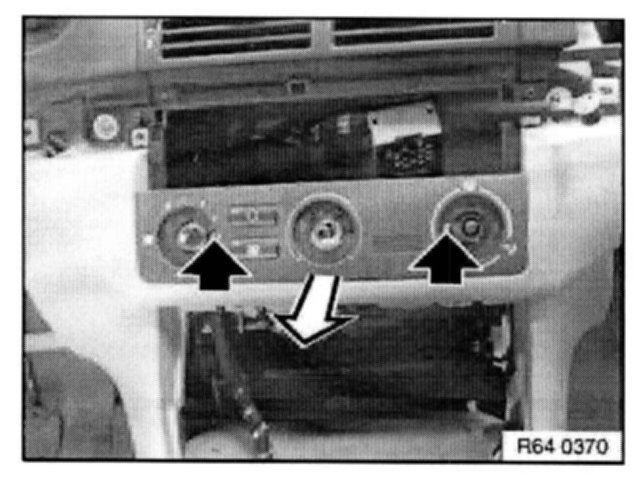

Release screws and remove front panel towards rear.

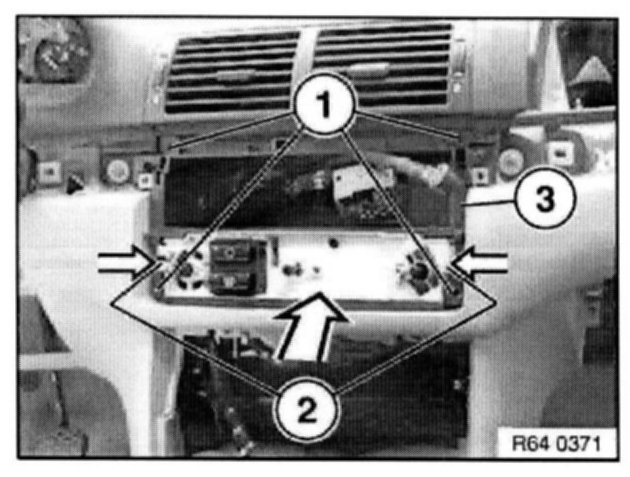

Loosen screws (1).
Remove center fresh air grill.
Unlock retainers (2) and push control panel inwards.
Remove frame (3).

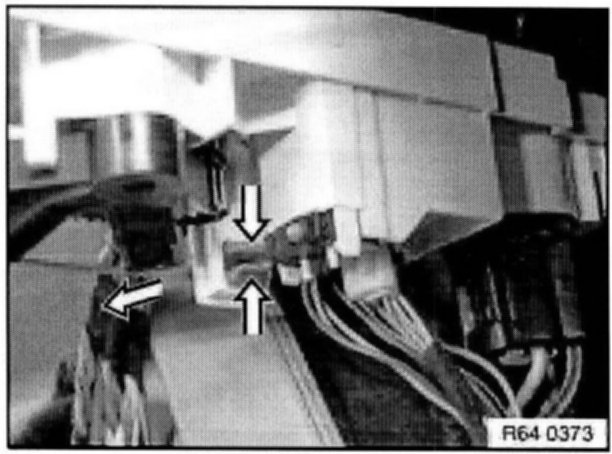

Unlock retaining clips and withdraw shaft.

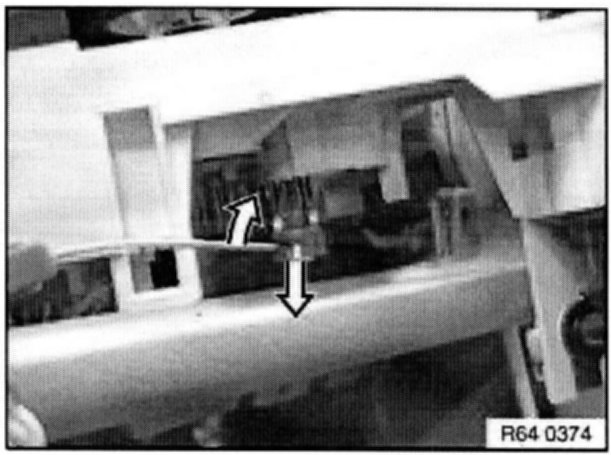

Unlock retaining clips and unclip Bowden cable.







Feed out Bowden cable.

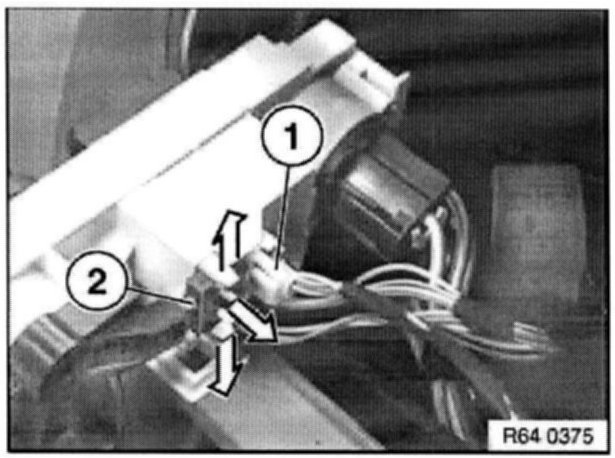

Disconnect plug connection (1).
Unlock retaining clips and pull out microswitch (2) in direction of arrow.
Remove heater controls.

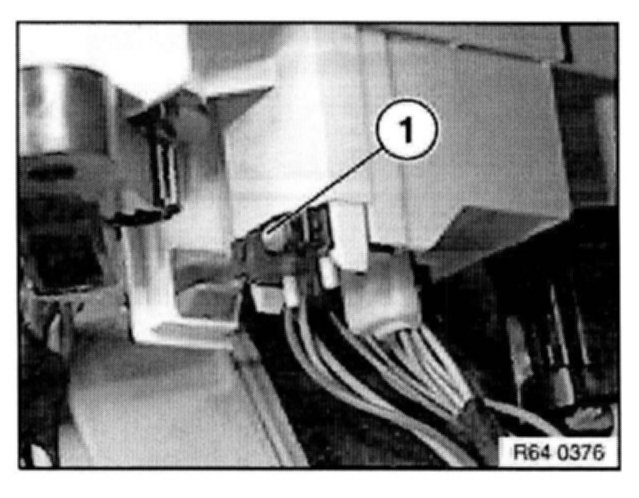

Installation Note: Clip in microswitch with button (1) towards top.
