Removing Heater Controls (Automatic Air Conditioning)

Removing And Installing Heater Controls (Automatic Air Conditioning)

Special Tools Required: 6401010

Necessary Preliminary Tasks:
Remove ignition key from ignition switch.
Pull fuse 63 from distribution box in glovebox.

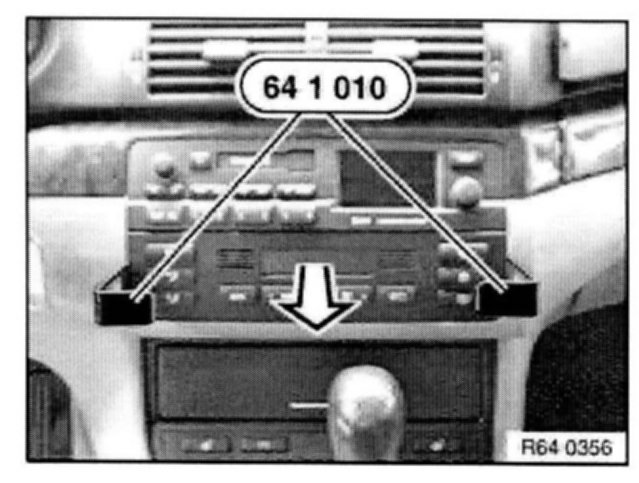

Pull out heater controls with special tool 64 1 010.
Unfasten plug connection.

Installation
Note color coding of plugs.
