Liquid Vapor Separator: Service and Repair

- Remove right rear side trim.




- Unscrew and remove cover.

NOTE: The expansion tank is secured to the cover.

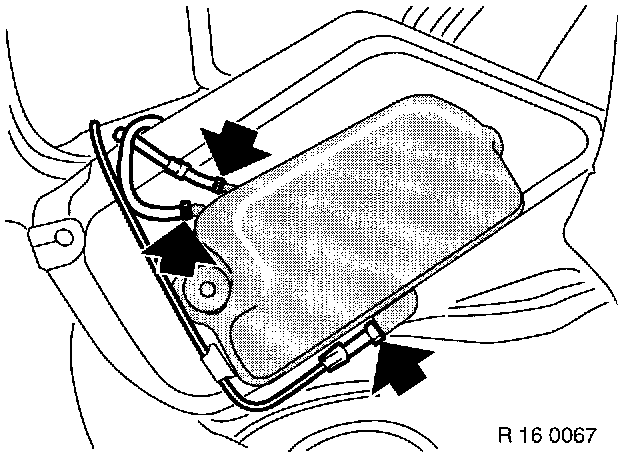

- Remove all hose connections from expansion tank.

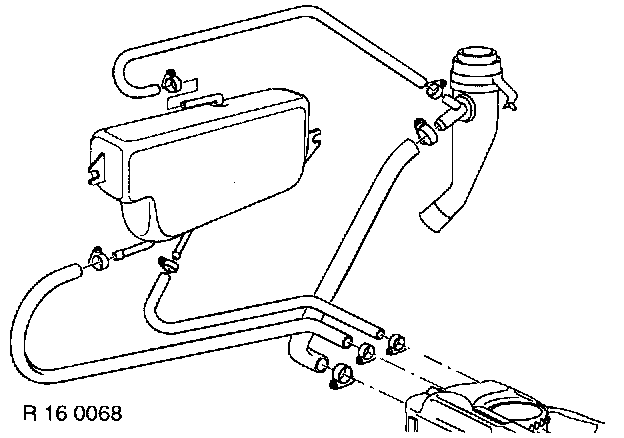

- Arrangement of hose connections.

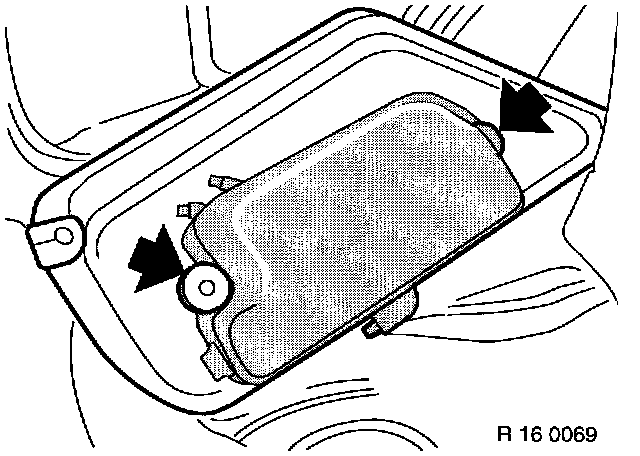

- Unscrew expansion tank from cover.
