Blower Motor Resistor: Service and Repair

Replacing Blower Fan Resistor

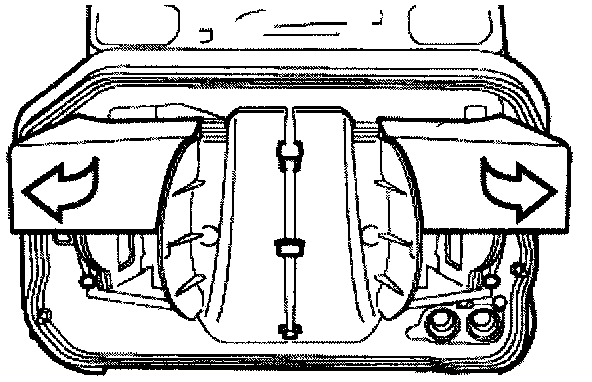

- Remove air collector.




- Unclip splash guard on the left.




- Pull off connectors. Loosen screw and lift out resistor.

Installation:
- Align resistor with guiding pin and screw tight.
