Compressor Control Relay
Compressor Control Relay

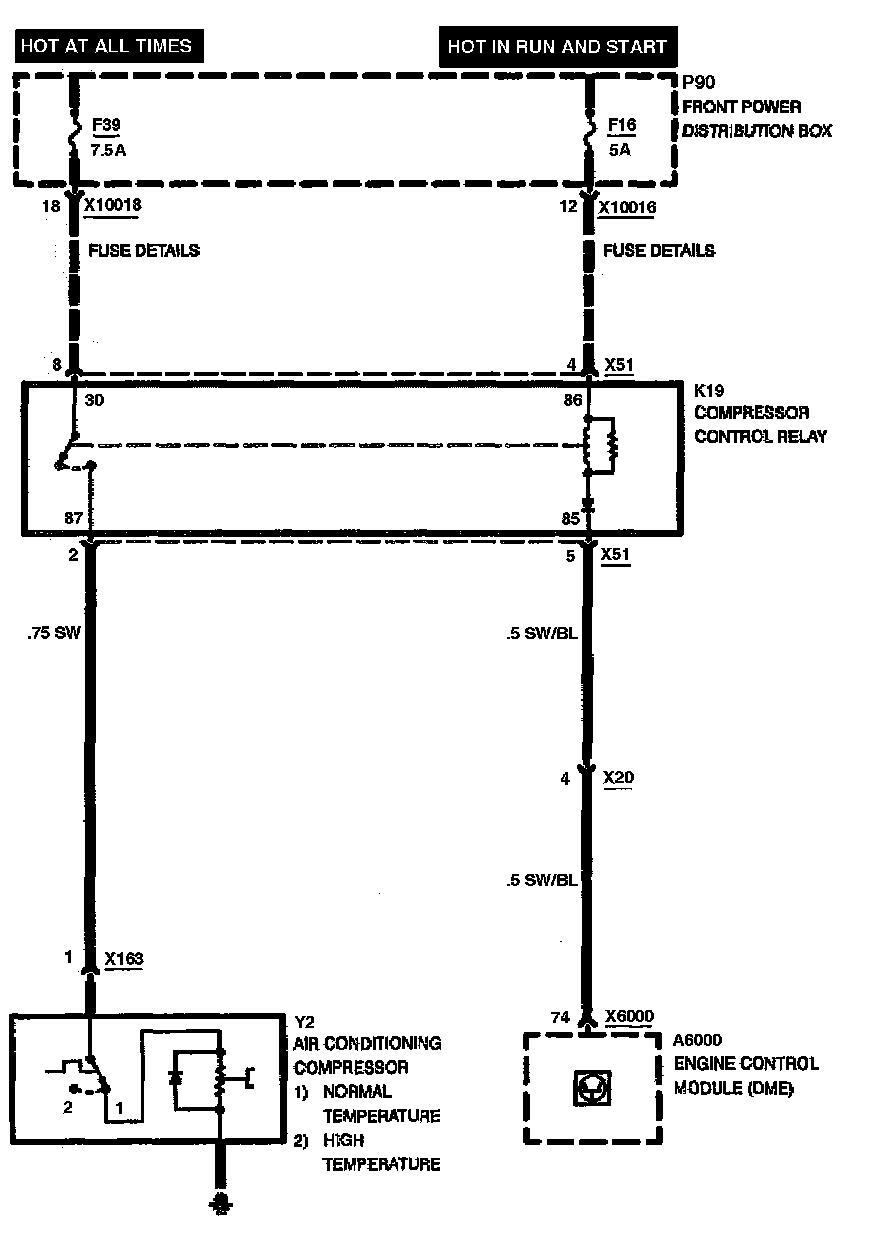

Engine Control System MS41.1: Compressor Control Relay:
