Blower Motor: Service and Repair

Blower Motor Replacement
- Remove complete wiper console.

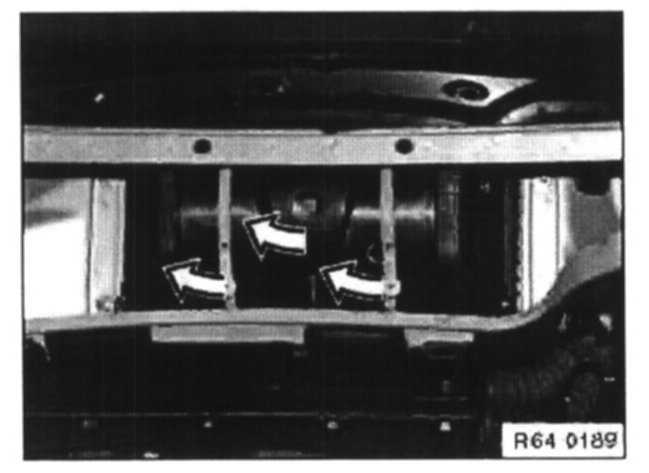

- Unfasten clamping straps and remove fan cover.




- Remove fan resistance.

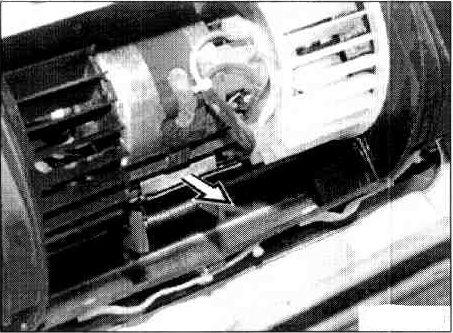

- Remove connector (2), unfasten do (1) and lift out fan.
