Z3 Roadster (E36/7) L4-1895cc 1.9L DOHC (M44)
>>
Repair and Diagnosis
>>
Powertrain Management
>>
Transmission Control Systems
>>
Diagrams
>>
Electrical Diagrams
>>
Sub-System Diagrams
Sub-System Diagrams

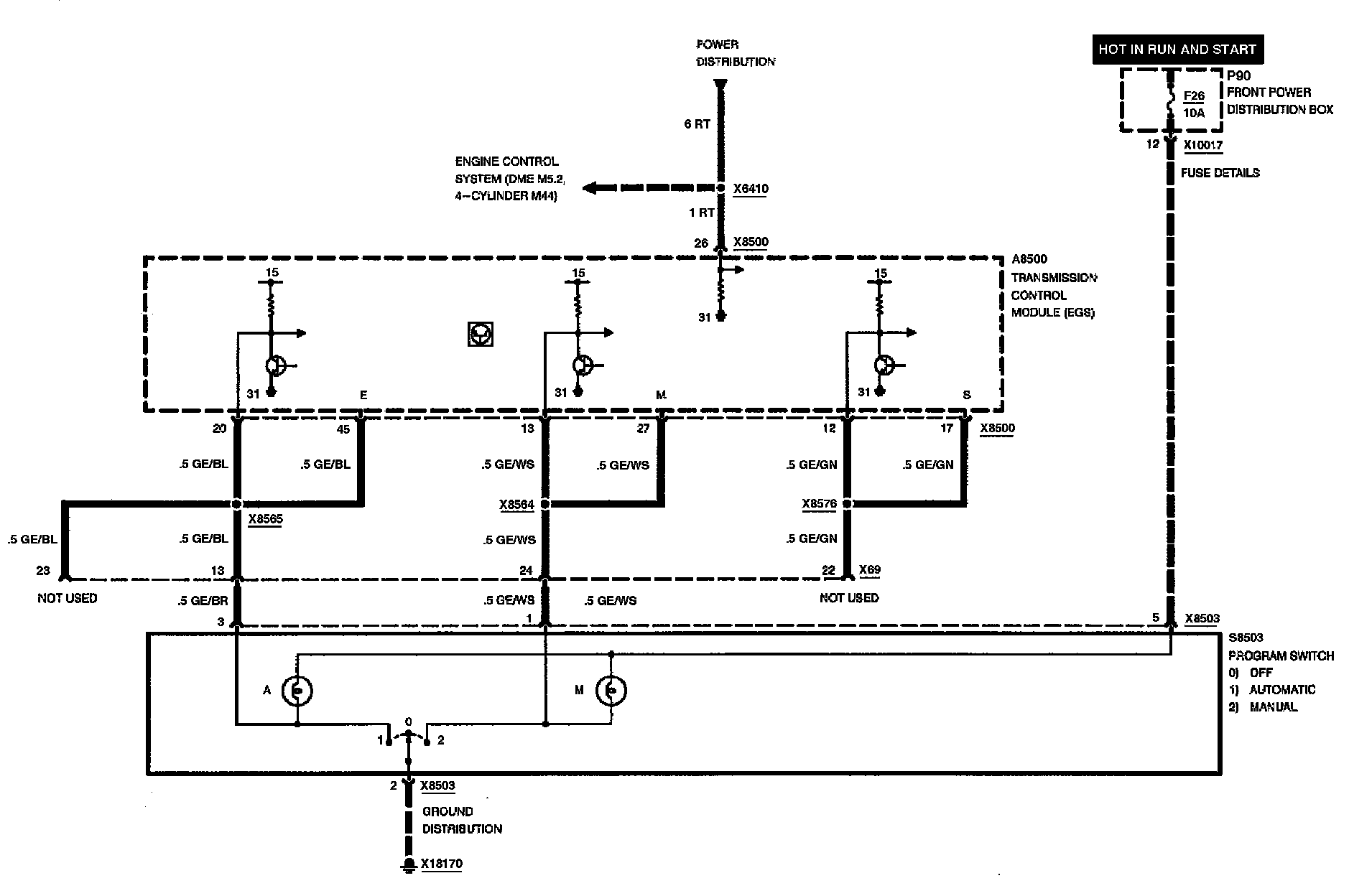

(Part 1 Of 5)

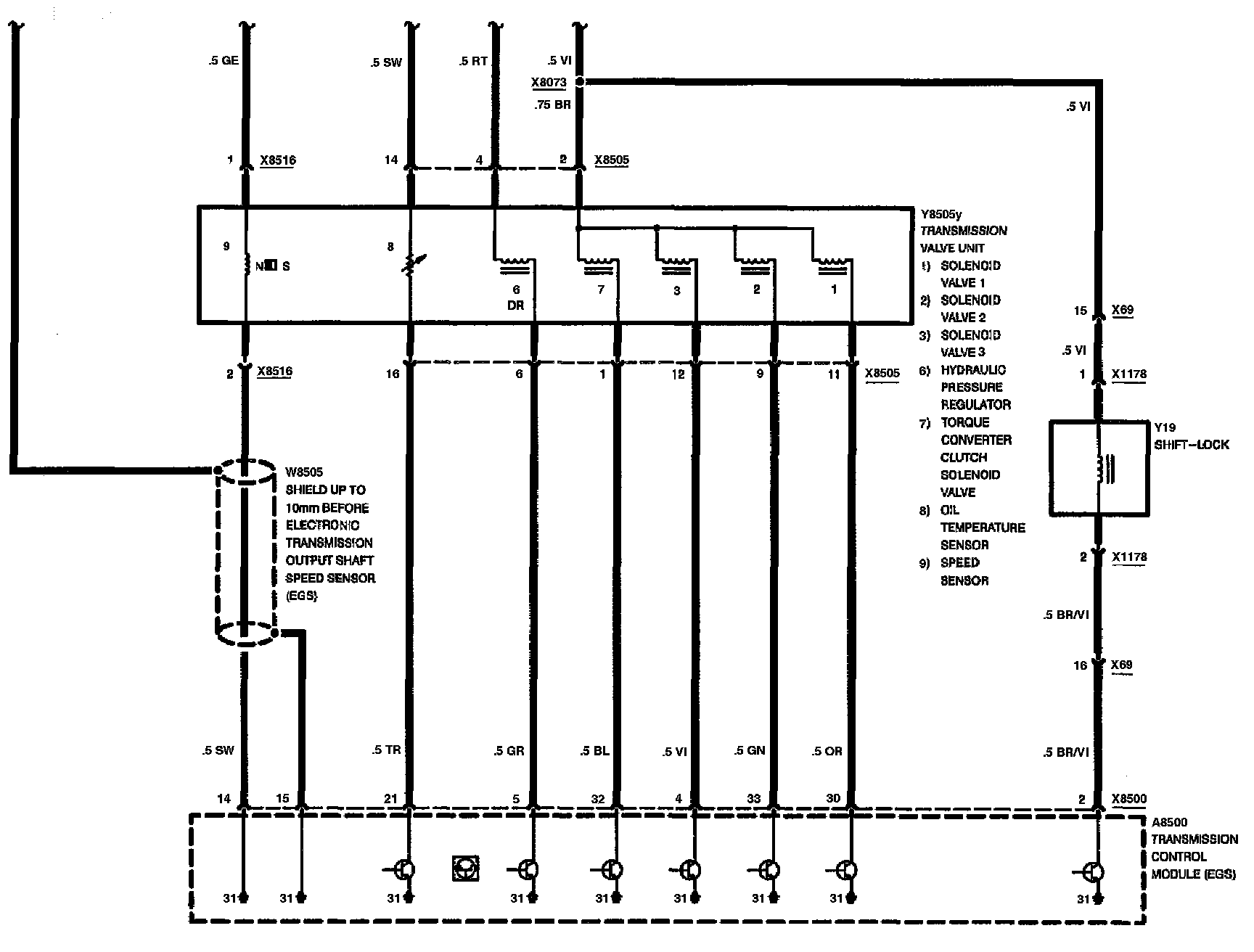

(Part 2 Of 5)

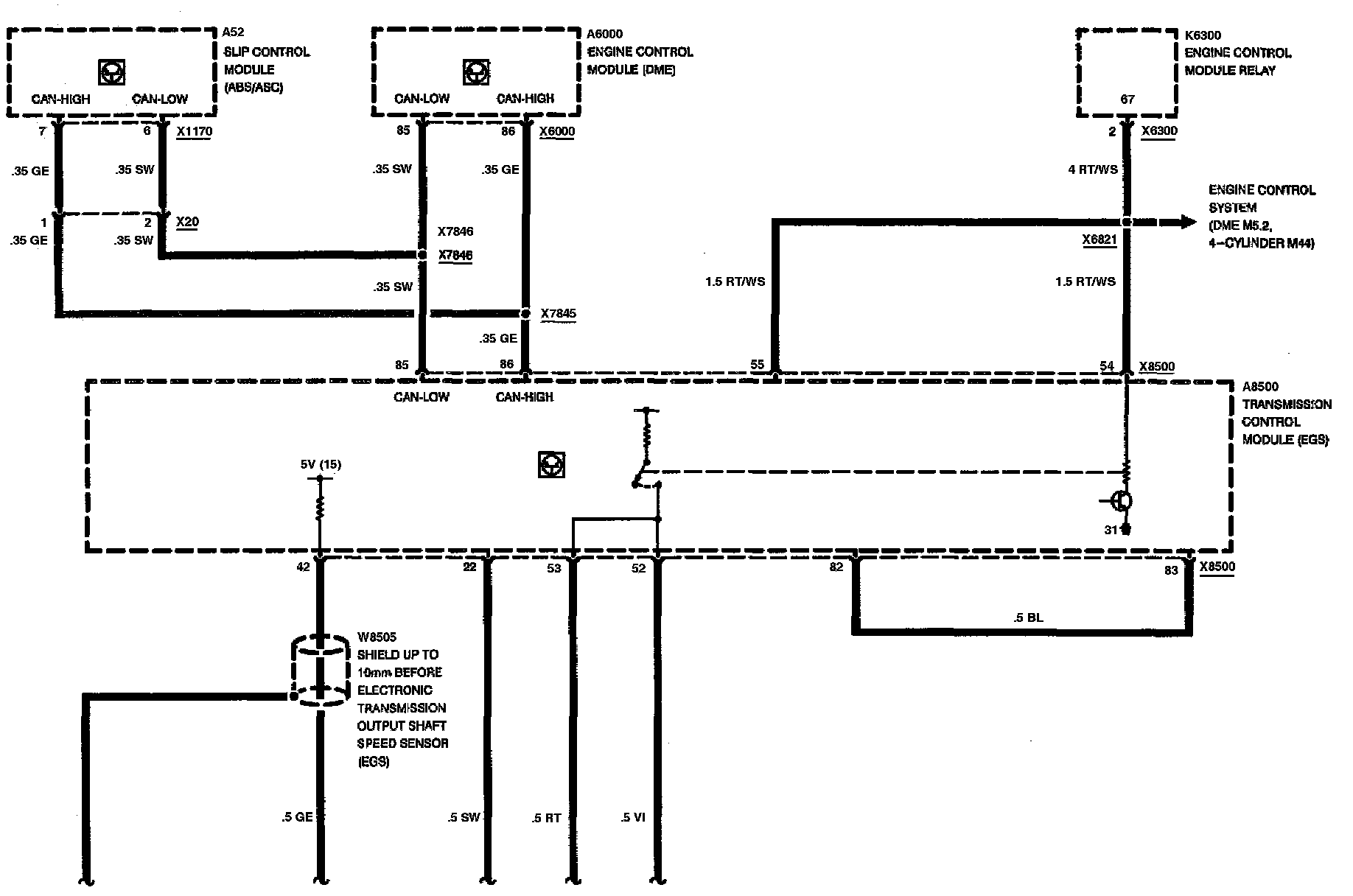

(Part 3 Of 5)

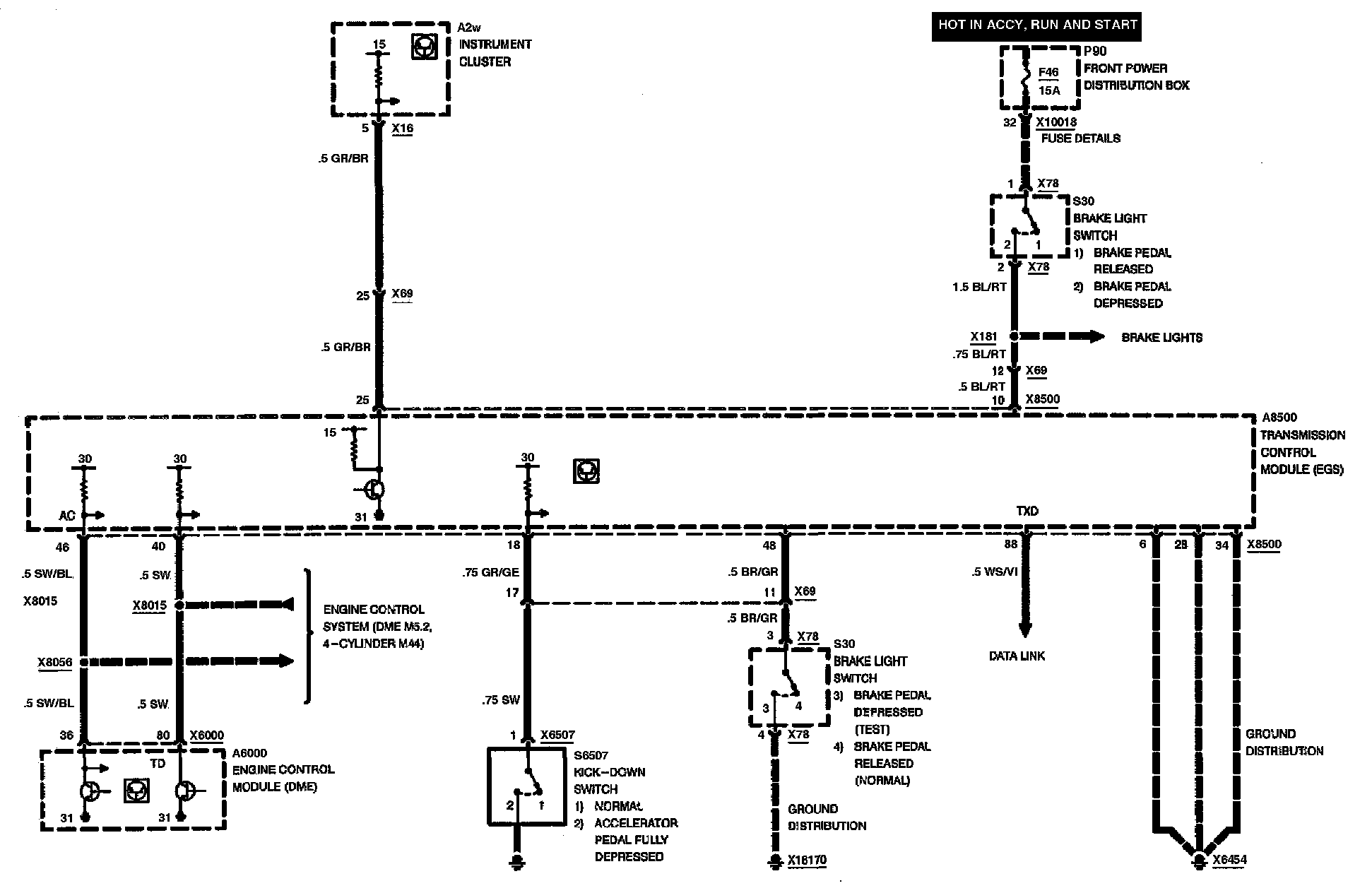

(Part 4 Of 5)
(Part 5 Of 5)
