Pressure Switch, Compressor Control Relay
Pressure Switch, Compressor Control Relay

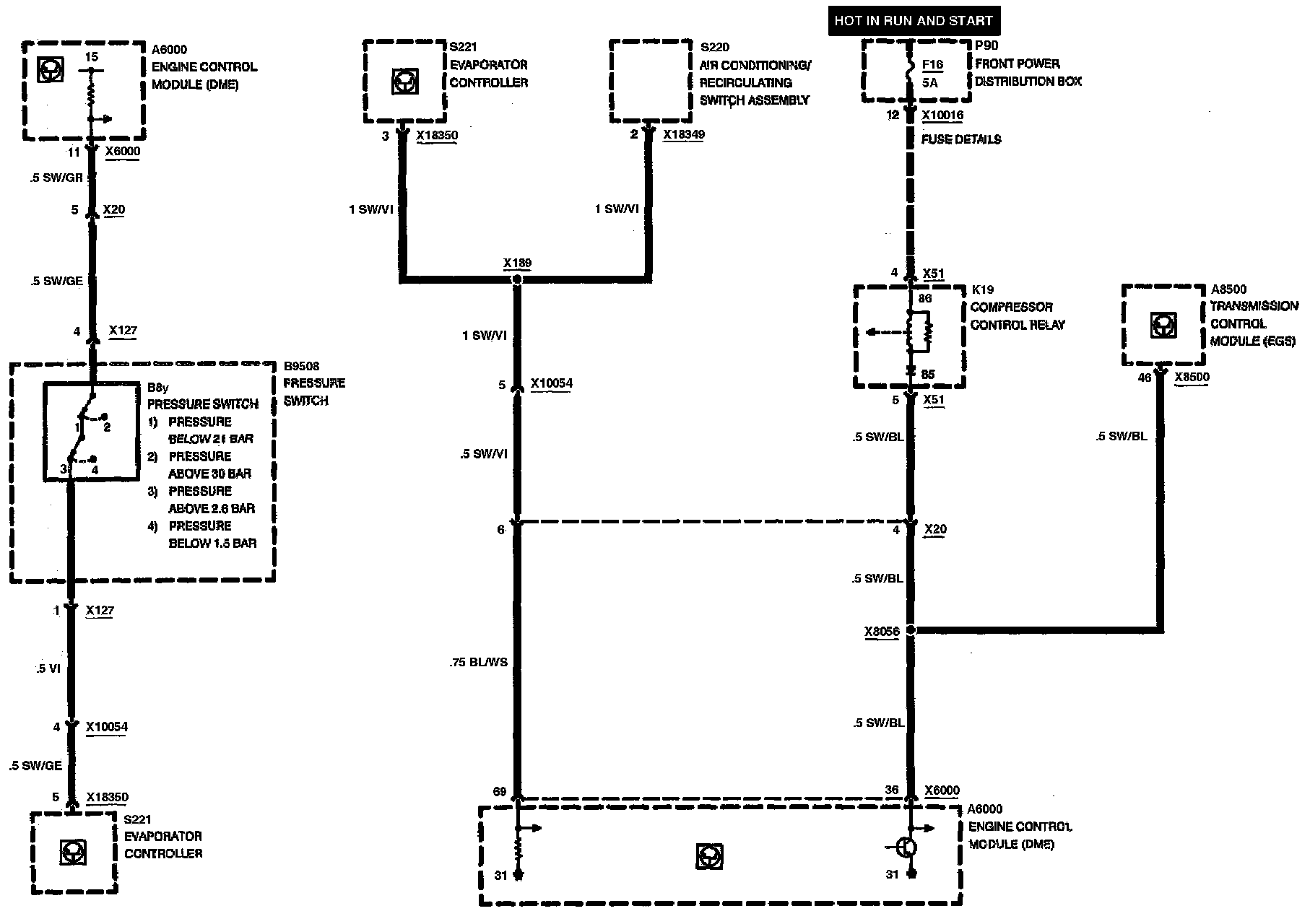

Engine Control System (DME 5.2): Pressure Switch, Compressor Control Relay:
