Temperature Controls
Temperature Controls

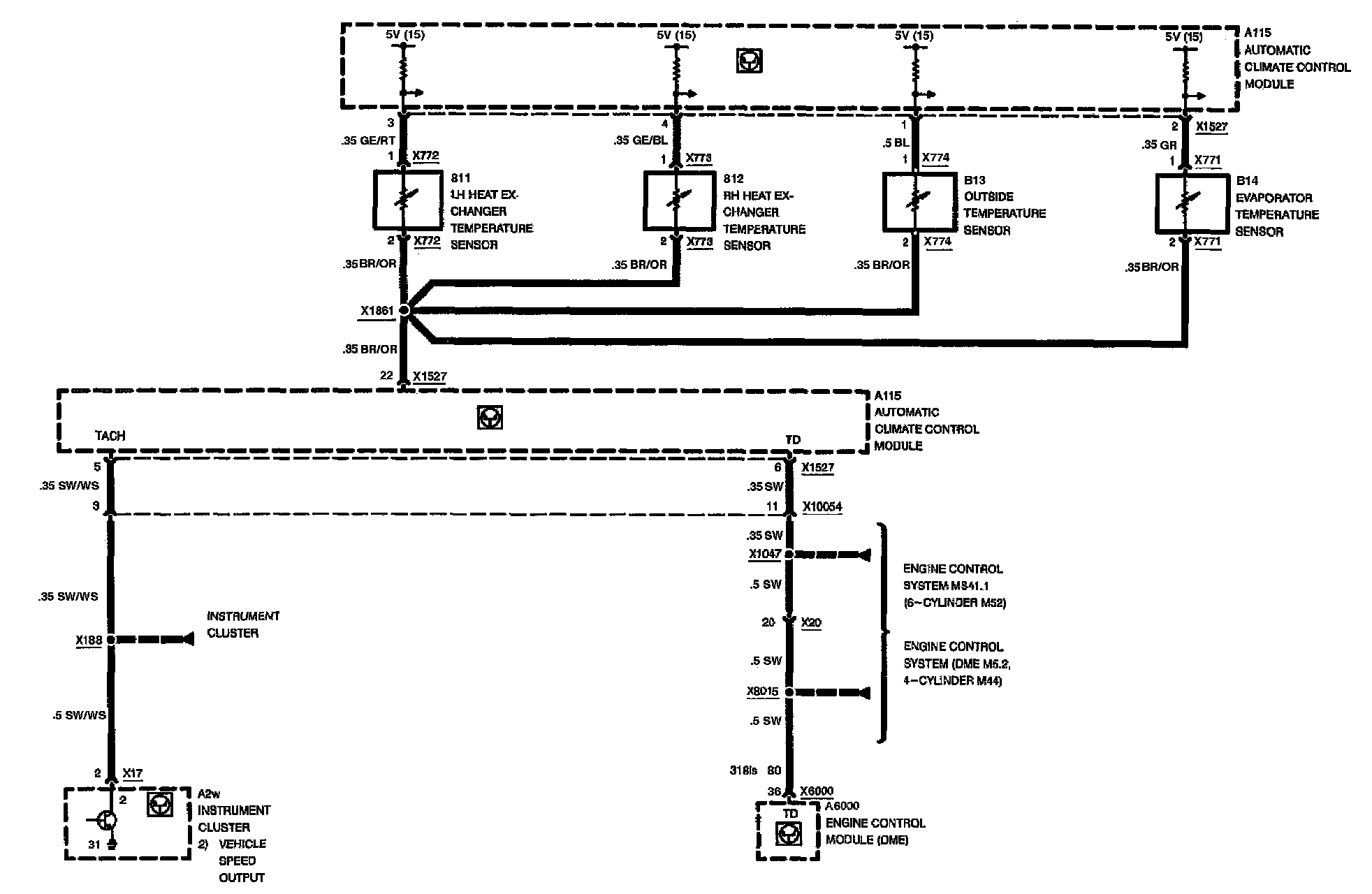

Integrated Climate Regulation (IHKA E36): Temperature Control:
