BMW
>>
1998
>>
M Coupe (E36/7) L6-3152cc 3.2L DOHC (S52)
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Wiper and Washer Systems
>>
System Diagram
>>
Wiper/Washer Module
>>
High
High

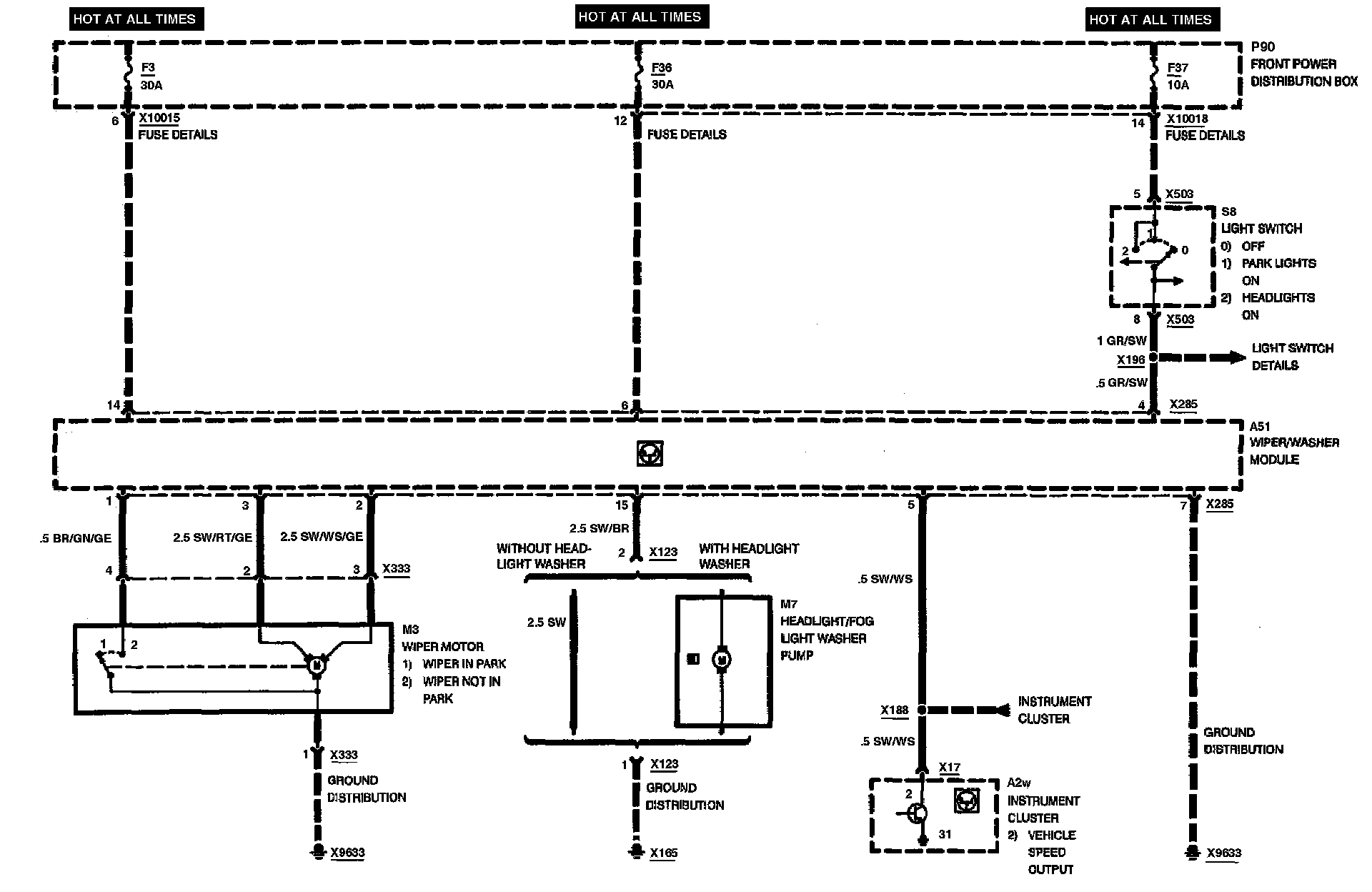

Wiper/Washer Module (WWM) : High (Part 1 Of 2):

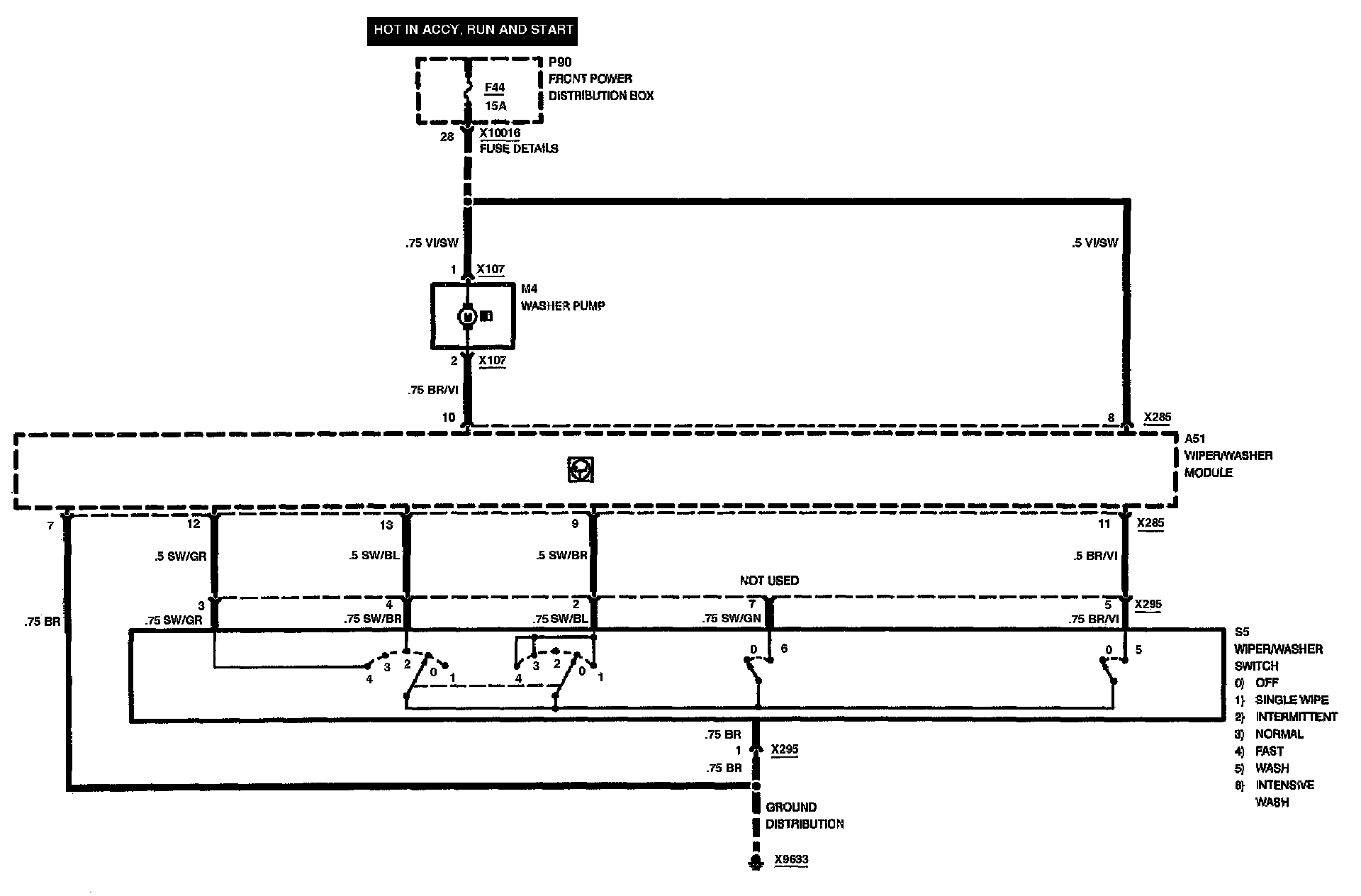

Wiper/Washer Module (WWM) : High (Part 2 Of 2):
