Baseplate (Heater Controls), Removal
Baseplate (Heater Controls), Removal
Remove Front Plate.
Front Plate Heater Controls, Removal

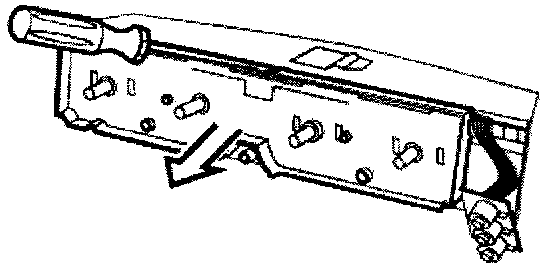

Unclip baseplate from housing and remove.
